NIKON Plan Achro LWD IMSI 100XC Objectives NA 0.85 WD 1.3-0.95mm

NIKON CFI Plan Achro LWD IMSI 100XC Objectives NA 0.85 WD 1.3-0.95mm

Phone：+86-21-54286005

Resources

Overview Specifications Dimensions

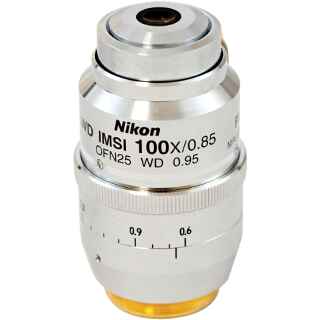

NIKON CFI Plan Achro LWD IMSI 100XC

Objectives NA 0.85 WD 1.3-0.95mm

Intracytoplasmic morphologically selected sperm injection (IMSI) is a technique in the in vitro fertilization (IVF) field used to select the healthiest sperm for intracytoplasmic sperm injection (ICSI). This level of morphological scrutiny requires very high magnification and sharp contrast. Nikon’s CFI Plan LWD IMSI 100X dry objective features a correction collar, DIC compatibility, and can be used with the same polarizer as Nikon’s NAMC optics, which makes switching between multiple objectives and contrast techniques simple.

CFI Plan Achromat LWD IMSI 100XC

	CFI Plan Achro LWD IMSI 100XC

Material Number	MRL65900
Type	Achromat
Primary Technique	IMSI
Immersion	Air
Magnification	100X
Numerical Aperture	0.85
Working Distance	1.3–0.95
Cover Glass Thickness	0.6–1.3
	CFI Plan Achro LWD IMSI 100XC
Diagram (mm)

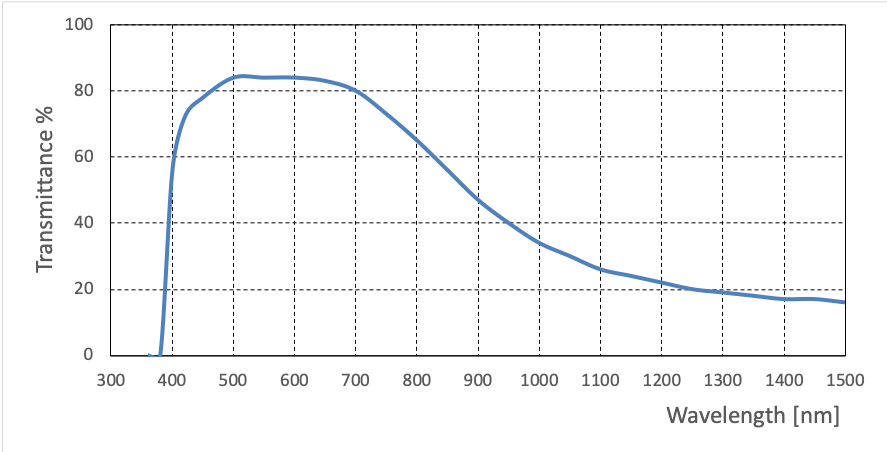

Transmittance Graph
	CFI Plan Achro LWD IMSI 100XC
Brightfield	suitable
Darkfield	darkfield condenser (oil)
DIC	suitable
Fluorescence (visible)	suitable
Fluorescence (UV)
Fluorescence (NIR)
Polarizing	suitable
Polarizing Type	Simple POL
Phase Contrast Ring
Phase Contrast Type
	CFI Plan Achro LWD IMSI 100XC
Correction Collar	✓
Spring Loaded
Iris
Long Working Distance	✓
Ti2-E PFS Compatible
	CFI Plan Achro LWD IMSI 100XC
Asbestos
Clear Tissue
Clinical / Laboratory	✓
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research	✓
TIRF
Tissue Culture
