NIKON S Plan Fluor ELWD NAMC 40XC Objectives NA 0.6 WD 3.6-2.8mm

NIKON CFI S Plan Fluor ELWD NAMC 40XC Objectives NA 0.6 WD 3.6-2.8mm

Phone：+86-21-54286005

Overview Specifications

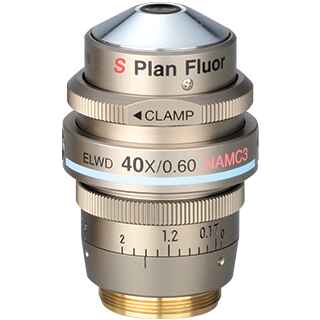

NIKON CFI S Plan Fluor ELWD NAMC 40XC

	CFI S Plan Fluor ELWD NAMC 40XC

Material Number	MRH68400
Type	Super Plan Fluor
Primary Technique	Advanced Modulation Contrast
Immersion	Air
Magnification	40X
Numerical Aperture	0.6
Working Distance	3.6–2.8
Cover Glass Thickness	0–2
	CFI S Plan Fluor ELWD NAMC 40XC

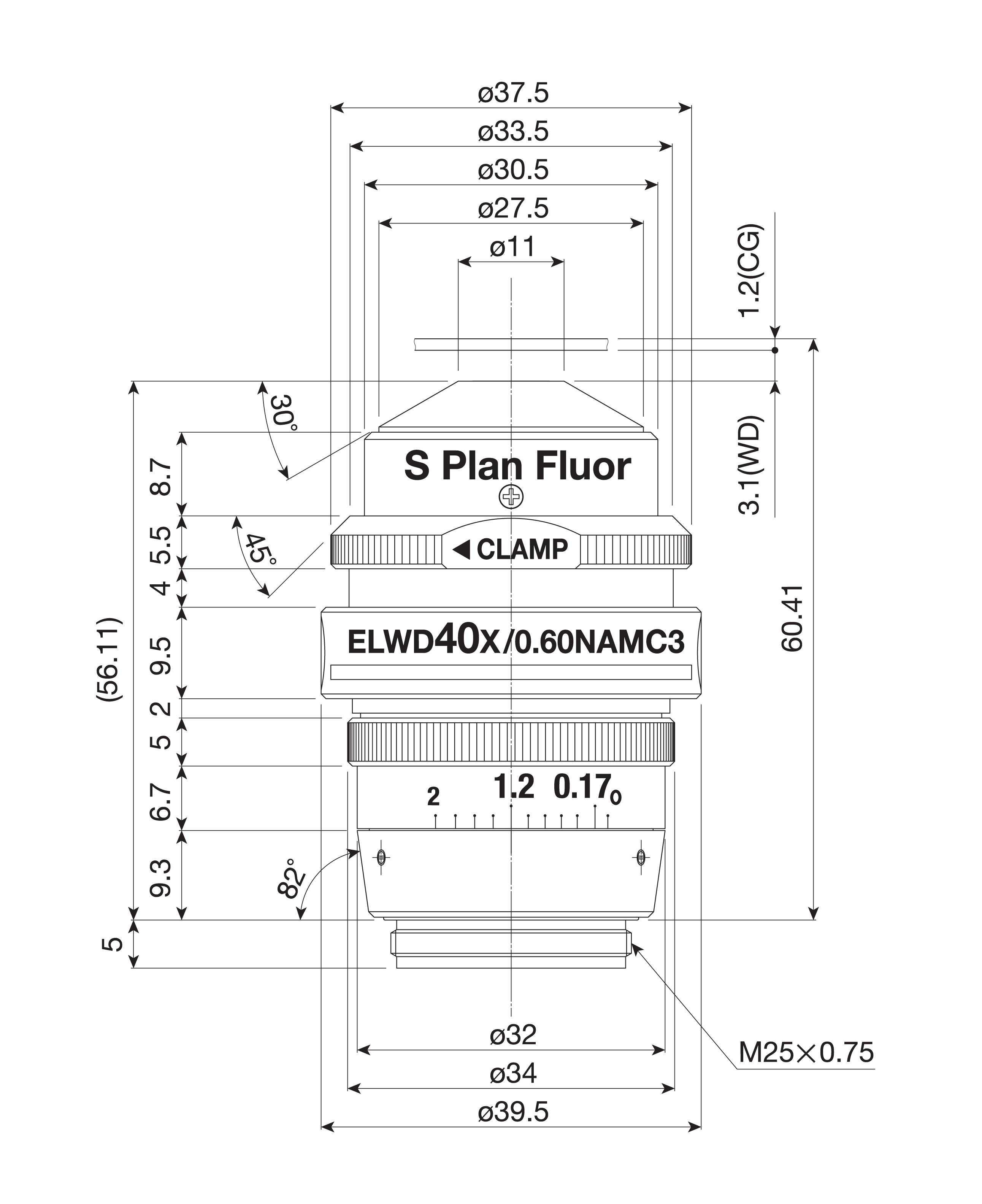

Diagram (mm)

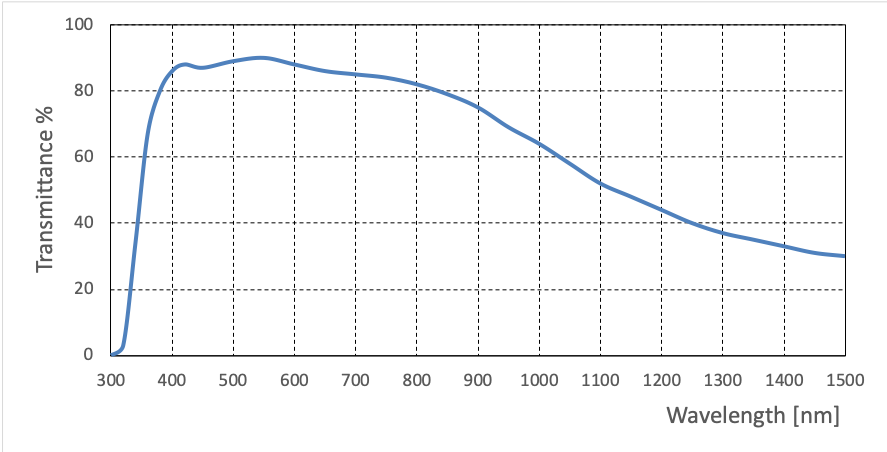

Transmittance Graph
	CFI S Plan Fluor ELWD NAMC 40XC
Brightfield	suitable
Darkfield
DIC
Fluorescence (visible)	suitable
Fluorescence (UV)	suitable
Fluorescence (NIR)
Polarizing
Polarizing Type
Phase Contrast Ring
Phase Contrast Type
	CFI S Plan Fluor ELWD NAMC 40XC
Correction Collar	✓
Spring Loaded
Iris
Long Working Distance	✓
Ti2-E PFS Compatible
	CFI S Plan Fluor ELWD NAMC 40XC
Asbestos
Clear Tissue
Clinical / Laboratory	✓
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research	✓
TIRF
Tissue Culture	✓
