中文NIKON CFI Achro LWD NAMC 20XF Objectives NA 0.4 WD 3.1mm
NIKON CFI Achro LWD NAMC 20XF Objectives NA 0.4 WD 3.1mm
Phone：+86-21-54286005

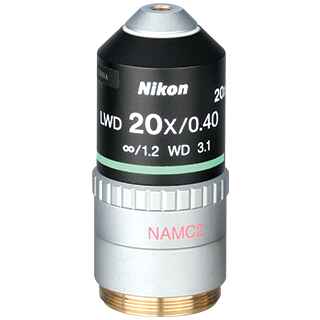

NIKON CFI Achro LWD NAMC 20XF
Objectives NA 0.4 WD 3.1mm
| CFI Achro LWD NAMC 20XF |
|
|---|---|
|
|
| Material Number | MRP66205 |
| Type | Achromat |
| Primary Technique | Advanced Modulation Contrast |
| Immersion | Air |
| Magnification | 20X |
| Numerical Aperture | 0.4 |
| Working Distance | 3.1 |
| Cover Glass Thickness | 1.2 |
| CFI Achro LWD NAMC 20XF |
|
| Diagram (mm) |
 |

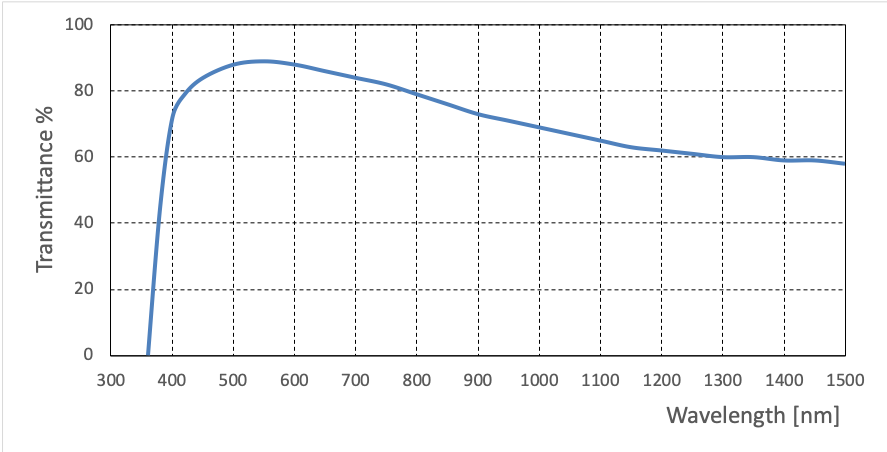

| Transmittance Graph |  |
| CFI Achro LWD NAMC 20XF |
|
| Brightfield | suitable |
| Darkfield | |
| DIC | |
| Fluorescence (visible) | possible but not recommended |
| Fluorescence (UV) | |
| Fluorescence (NIR) | |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Achro LWD NAMC 20XF |
|
| Correction Collar | |
| Spring Loaded | |
| Iris | |
| Long Working Distance | ✓ |
| Ti2-E PFS Compatible | |
| CFI Achro LWD NAMC 20XF |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | ✓ |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | |
| TIRF | |
| Tissue Culture |
