中文NIKON CFI Super Fluor 100XS Oil Objectives NA 0.5-1.3 WD 0.2mm
NIKON CFI Super Fluor 100XS Oil Objectives NA 0.5-1.3 WD 0.2mm
Phone：+86-21-54286005

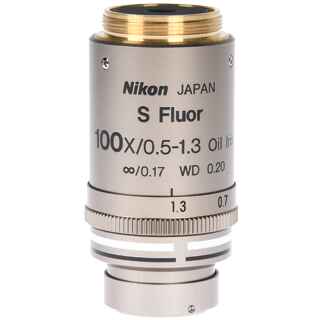

NIKON CFI Super Fluor 100XS Oil
Objectives NA 0.5-1.3 WD 0.2mm
| CFI Super Fluor 100XS Oil |
|
|---|---|
|
|
| Material Number | MRF02900 |
| Type | Super Fluor |
| Primary Technique | Brightfield |
| Immersion | Oil |
| Magnification | 100X |
| Numerical Aperture | 0.5–1.3 |
| Working Distance | 0.2 |
| Cover Glass Thickness | 0.17 |
| CFI Super Fluor 100XS Oil |
|
| Diagram (mm) |
 |

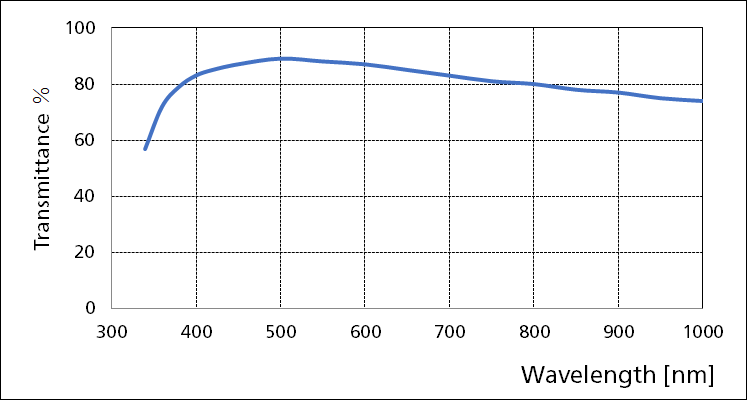

| Transmittance Graph |  |
| CFI Super Fluor 100XS Oil |
|
| Brightfield | recommended for best results |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | high transmittance with an ultraviolet wavelength range of up to 340nm |
| Fluorescence (NIR) | |
| Polarizing | possible but not recommended |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Super Fluor 100XS Oil |
|
| Correction Collar | |
| Spring Loaded | ✓ |
| Iris | ✓ |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Super Fluor 100XS Oil |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
