NIKON CFI S Plan Fluor ELWD 60XC Objectives NA 0.7 WD 2.6-1.8mm
Phone：+86-21-54286005

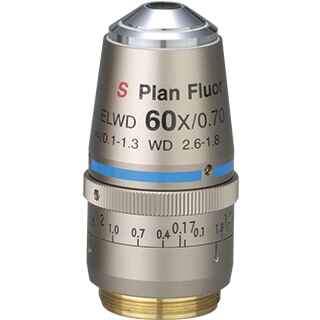

NIKON CFI S Plan Fluor ELWD 60XC
Objectives NA 0.7 WD 2.6-1.8mm
| CFI S Plan Fluor ELWD 60XC |
|
|---|---|
 |
|
| Material Number | MRH08630 |
| Type | Super Plan Fluor |
| Primary Technique | Brightfield |
| Immersion | Air |
| Magnification | 60X |
| Numerical Aperture | 0.7 |
| Working Distance | 2.6–1.8 |
| Cover Glass Thickness | 0.1–1.3 |
| CFI S Plan Fluor ELWD 60XC |
|

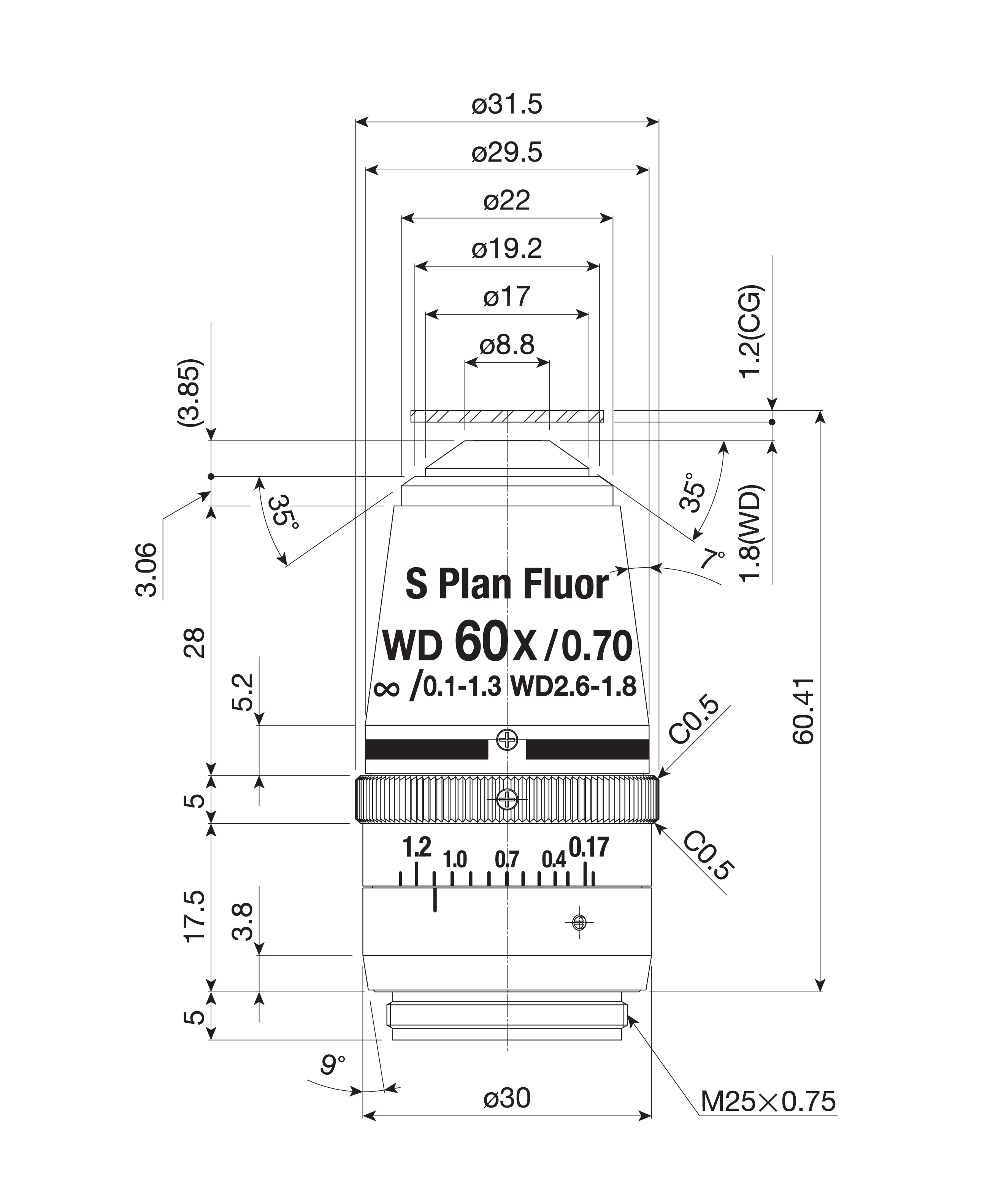

| Diagram (mm) |
 |
| Transmittance Graph |  |
| CFI S Plan Fluor ELWD 60XC |
|
| Brightfield | recommended for best results |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | recommended for best results |
| Fluorescence (NIR) | |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI S Plan Fluor ELWD 60XC |
|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | ✓ |
| Ti2-E PFS Compatible | |
| CFI S Plan Fluor ELWD 60XC |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture | ✓ |
