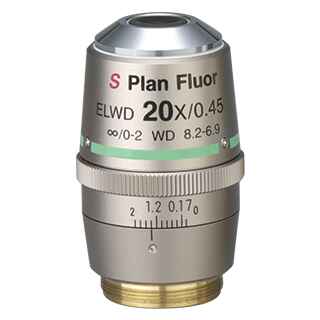

NIKON CFI S Plan Fluor ELWD 20XC Objectives NA 0.45 WD 8.2-6.9mm

Phone：+86-21-54286005

Overview Specifications

NIKON CFI S Plan Fluor ELWD 20XC

CFI S Plan Fluor ELWD 20XC

	CFI S Plan Fluor ELWD 20XC

Material Number	MRH08230
Type	Super Plan Fluor
Primary Technique	Brightfield
Immersion	Air
Magnification	20X
Numerical Aperture	0.45
Working Distance	8.2–6.9
Cover Glass Thickness	0–2
	CFI S Plan Fluor ELWD 20XC
Diagram (mm)

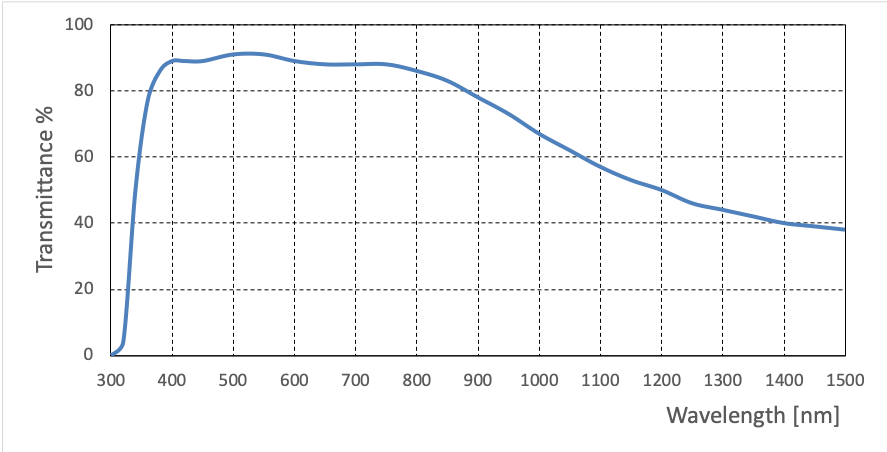

Transmittance Graph
	CFI S Plan Fluor ELWD 20XC
Brightfield	recommended for best results
Darkfield	universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil)
DIC	suitable
Fluorescence (visible)	recommended for best results
Fluorescence (UV)	recommended for best results
Fluorescence (NIR)
Polarizing	suitable
Polarizing Type	Simple POL
Phase Contrast Ring
Phase Contrast Type
	CFI S Plan Fluor ELWD 20XC
Correction Collar	✓
Spring Loaded
Iris
Long Working Distance	✓
Ti2-E PFS Compatible	✓
	CFI S Plan Fluor ELWD 20XC
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal
Education
Laser Trapping / Tweezing
Multiphoton
SIM
STORM
Research	✓
TIRF
Tissue Culture	✓
