中文NIKON CFI Plan Fluor 20XC MI Objectives NA 0.75 WD 0.51-0.33mm
NIKON CFI Plan Fluor 20XC MI Objectives NA 0.75 WD 0.51-0.33mm
Phone：+86-21-54286005

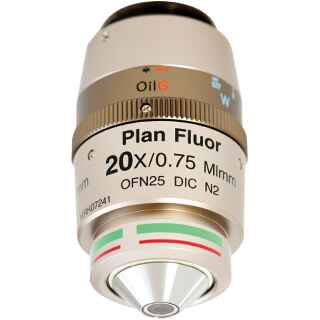

NIKON CFI Plan Fluor 20XC MI
Objectives NA 0.75 WD 0.51-0.33mm
| CFI Plan Fluor 20XC MI |
|
|---|---|
|
|
| Material Number | MRH07241 |
| Type | Plan Fluor |
| Primary Technique | Brightfield |
| Immersion | Oil, Water Immersion, Glycerin, Silicone Oil |
| Magnification | 20X |
| Numerical Aperture | 0.75 |
| Working Distance | 0.51–0.33 |
| Cover Glass Thickness | 0–0.17 |
| CFI Plan Fluor 20XC MI |
|
| Diagram (mm) |
 |

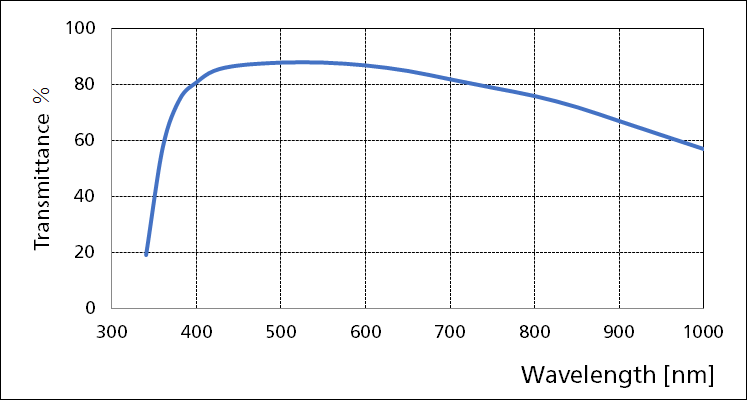

| Transmittance Graph |  |
| CFI Plan Fluor 20XC MI |
|
| Brightfield | recommended for best results |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | recommended for best results |
| Fluorescence (NIR) | |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Plan Fluor 20XC MI |
|
| Correction Collar | ✓ |
| Spring Loaded | ✓ |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Plan Fluor 20XC MI |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
