中文NIKON CFI Plan Fluor 4X Objectives NA 1.3 WD 17.2mm
NIKON CFI Plan Fluor 4X Objectives NA 1.3 WD 17.2mm
Phone：+86-21-54286005

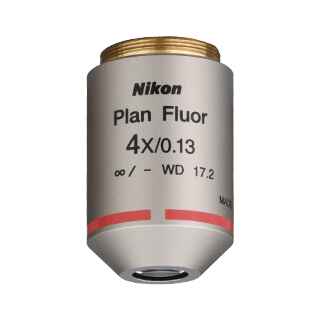

NIKON CFI Plan Fluor 4X
Objectives NA 1.3 WD 17.2mm
| CFI Plan Fluor 4X |
|
|---|---|
|
|
| Material Number | MRH00045 |
| Type | Plan Fluor |
| Primary Technique | Brightfield |
| Immersion | Air |
| Magnification | 4X |
| Numerical Aperture | 0.13 |
| Working Distance | 17.2 |
| Cover Glass Thickness |
| CFI Plan Fluor 4X |
|
|---|---|
| Diagram (mm) |
 |

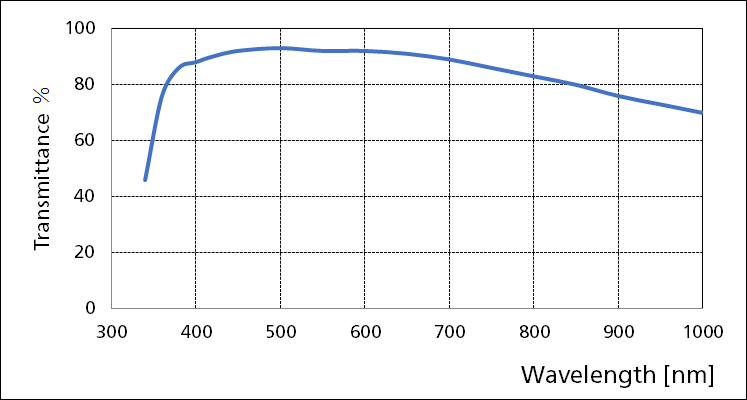

| Transmittance Graph |  |
| CFI Plan Fluor 4X |
|
|---|---|
| Brightfield | recommended for best results |
| Darkfield | |
| DIC | |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | recommended for best results |
| Fluorescence (NIR) | |
| Polarizing | possible but not recommended |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type |
| CFI Plan Fluor 4X |
|
|---|---|
| Correction Collar | |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible |
| CFI Plan Fluor 4X |
|
|---|---|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | ✓ |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
