中文NIKON CFI Plan Fluor DLL 20X Objectives NA 0.5 WD 2.1mm
NIKON CFI Plan Fluor DLL 20X Objectives NA 0.5 WD 2.1mm
Phone：+86-21-54286005

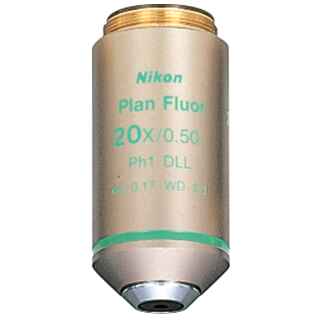

NIKON CFI Plan Fluor DLL 20X
Objectives NA 0.5 WD 2.1mm
| CFI Plan Fluor DLL 20X |
|
|---|---|
|
|
| Material Number | MRH10205 |
| Type | Plan Fluor |
| Primary Technique | Phase Contrast |
| Immersion | Air |
| Magnification | 20X |
| Numerical Aperture | 0.5 |
| Working Distance | 2.1 |
| Cover Glass Thickness | 0.17 |
| CFI Plan Fluor DLL 20X |
|
| Diagram (mm) |
 |

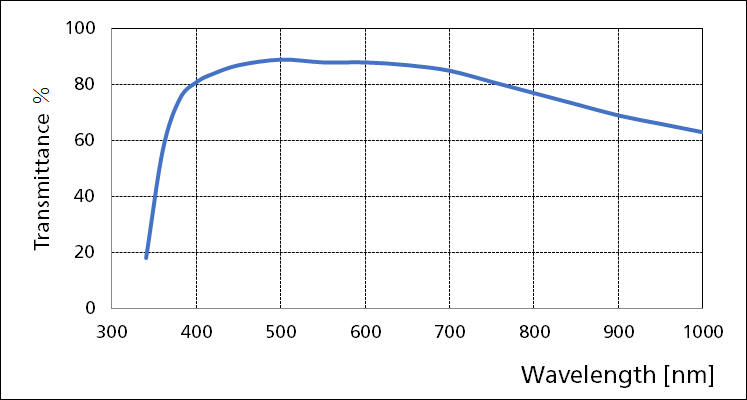

| Transmittance Graph |  |
| CFI Plan Fluor DLL 20X |
|
| Brightfield | suitable |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | suitable |
| Fluorescence (NIR) | |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | ◎PH1 |
| Phase Contrast Type | DLL |
| CFI Plan Fluor DLL 20X |
|
| Correction Collar | |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | ✓ |
| CFI Plan Fluor DLL 20X |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
