中文NIKON CFI Plan Fluor DL 10XF Objectives NA 0.3 WD 15.3mm
NIKON CFI Plan Fluor DL 10XF Objectives NA 0.3 WD 15.3mm
Phone：+86-21-54286005

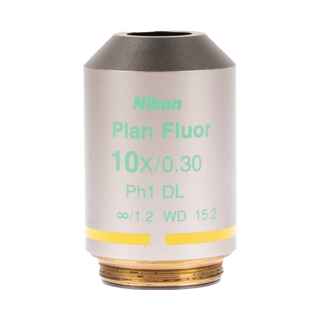

NIKON CFI Plan Fluor DL 10XF
Objectives NA 0.3 WD 15.3mm
| CFI Plan Fluor DL 10XF |
|
|---|---|
|
|
| Material Number | MRH20105 |
| Type | Plan Fluor |
| Primary Technique | Phase Contrast |
| Immersion | Air |
| Magnification | 10X |
| Numerical Aperture | 0.3 |
| Working Distance | 15.2 |
| Cover Glass Thickness | 1.2 |
| CFI Plan Fluor DL 10XF |
|
| Diagram (mm) |
 |

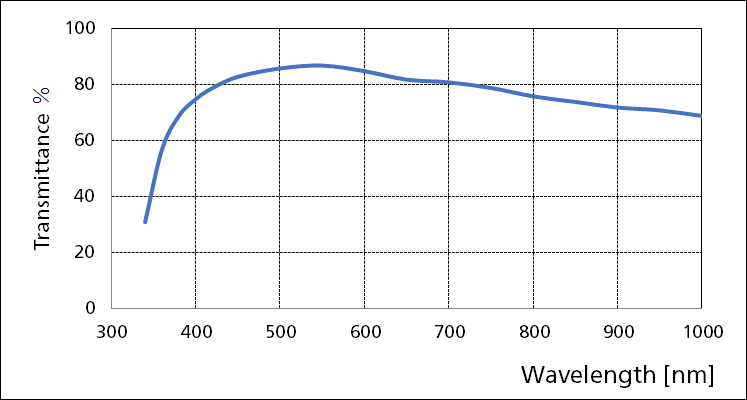

| Transmittance Graph |  |
| CFI Plan Fluor DL 10XF |
|
| Brightfield | suitable |
| Darkfield | universal condenser (dry) and darkfield ring |
| DIC | |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | suitable |
| Fluorescence (NIR) | |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | ◎PH1 |
| Phase Contrast Type | DL |
| CFI Plan Fluor DL 10XF |
|
| Correction Collar | |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | ✓ |
| CFI Plan Fluor DL 10XF |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture | ✓ |
