中文NIKON CFI Apo LWD λ S 20XC WI Objectives
NIKON CFI Apo LWD Lambdaλ S 20XC WI Objectives
Phone：+86-21-54286005
NIKON CFI Apo LWD Lambdaλ S 20XC WI
Objectives
| CFI Apo LWD Lambda S 20XC WI |
|
|---|---|
|
|
| Material Number | MRD77200 |
| Type | Apochromat |
| Primary Technique | Confocal |
| Immersion | Water Immersion |
| Magnification | 20X |
| Numerical Aperture | 0.95 |
| Working Distance | 0.99–0.9 |
| Cover Glass Thickness | 0.11–0.23 |
| CFI Apo LWD Lambda S 20XC WI |
|

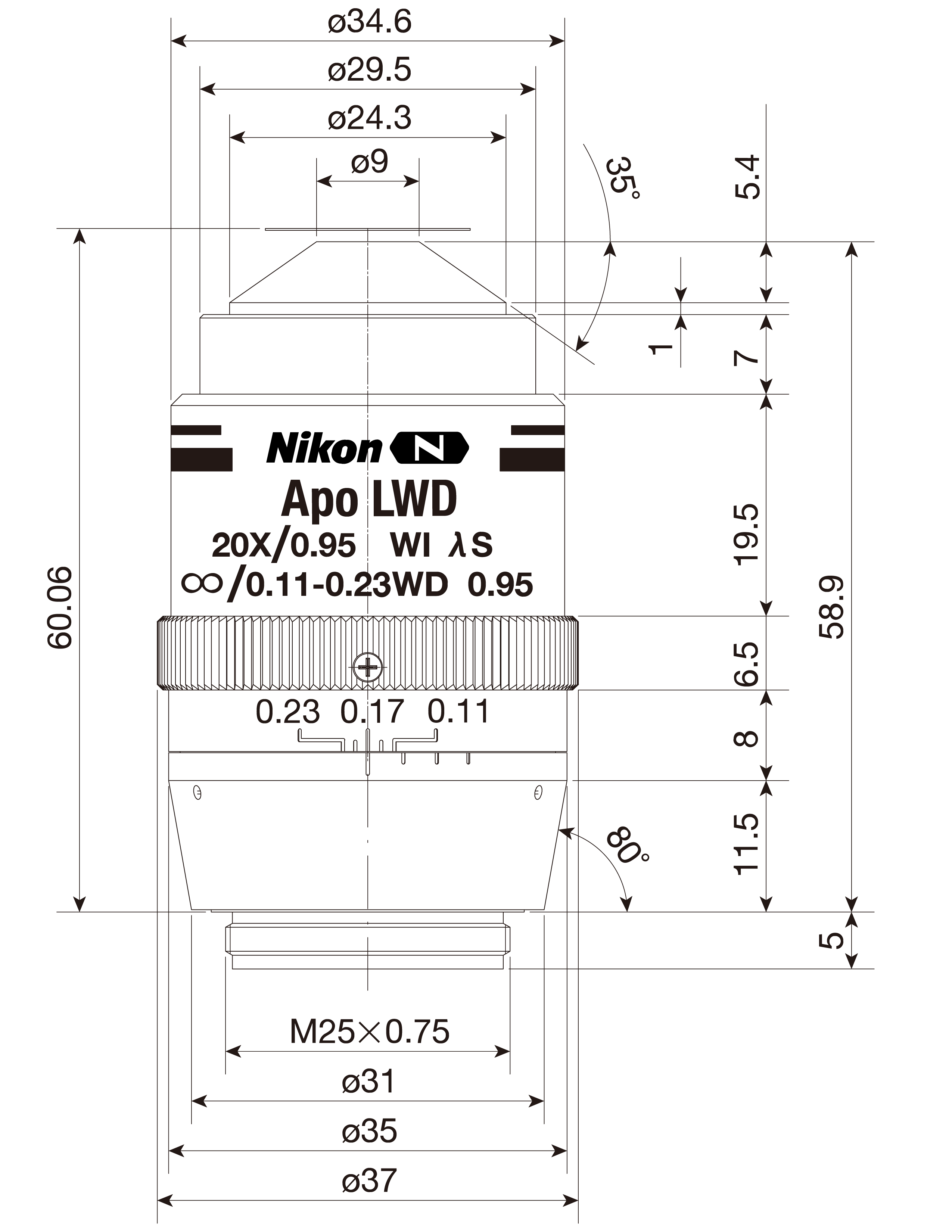

| Diagram (mm) |
 |

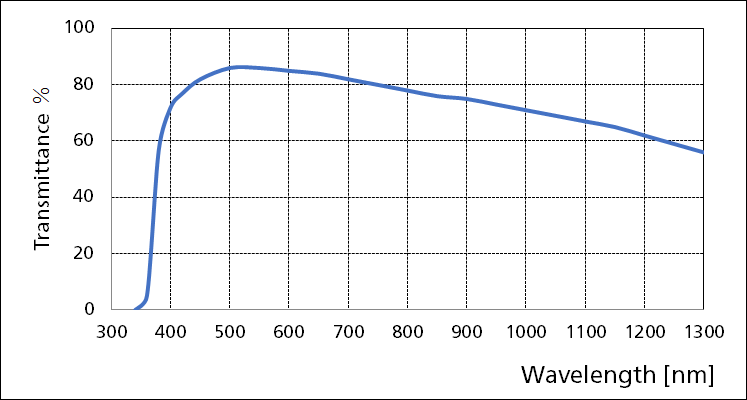

| Transmittance Graph |  |
| CFI Apo LWD Lambda S 20XC WI |
|
| Brightfield | recommended for best results |
| Darkfield | darkfield condenser (oil) |
| DIC | suitable |
| Fluorescence (visible) | suitable |
| Fluorescence (UV) | |
| Fluorescence (NIR) | suitable |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Apo LWD Lambda S 20XC WI |
|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | ✓ |
| Ti2-E PFS Compatible | ✓ |
| CFI Apo LWD Lambda S 20XC WI |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
