中文NIKON CFI Plan 100XC W Objectives NA 1.1 WD 2.5mm
NIKON CFI Plan 100XC W Objectives NA 1.1 WD 2.5mm
Phone：+86-21-54286005

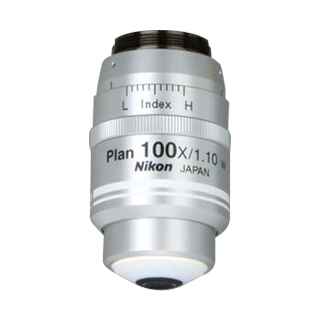

NIKON CFI Plan 100XC W
Objectives NA 1.1 WD 2.5mm
| CFI Plan 100XC W |
|
|---|---|
|
|
| Material Number | MRL07920 |
| Type | Water Dipping |
| Primary Technique | Brightfield |
| Immersion | Water Dipping |
| Magnification | 100X |
| Numerical Aperture | 1.1 |
| Working Distance | 2.5 |
| Cover Glass Thickness | 0 |
| CFI Plan 100XC W |
|
|---|---|

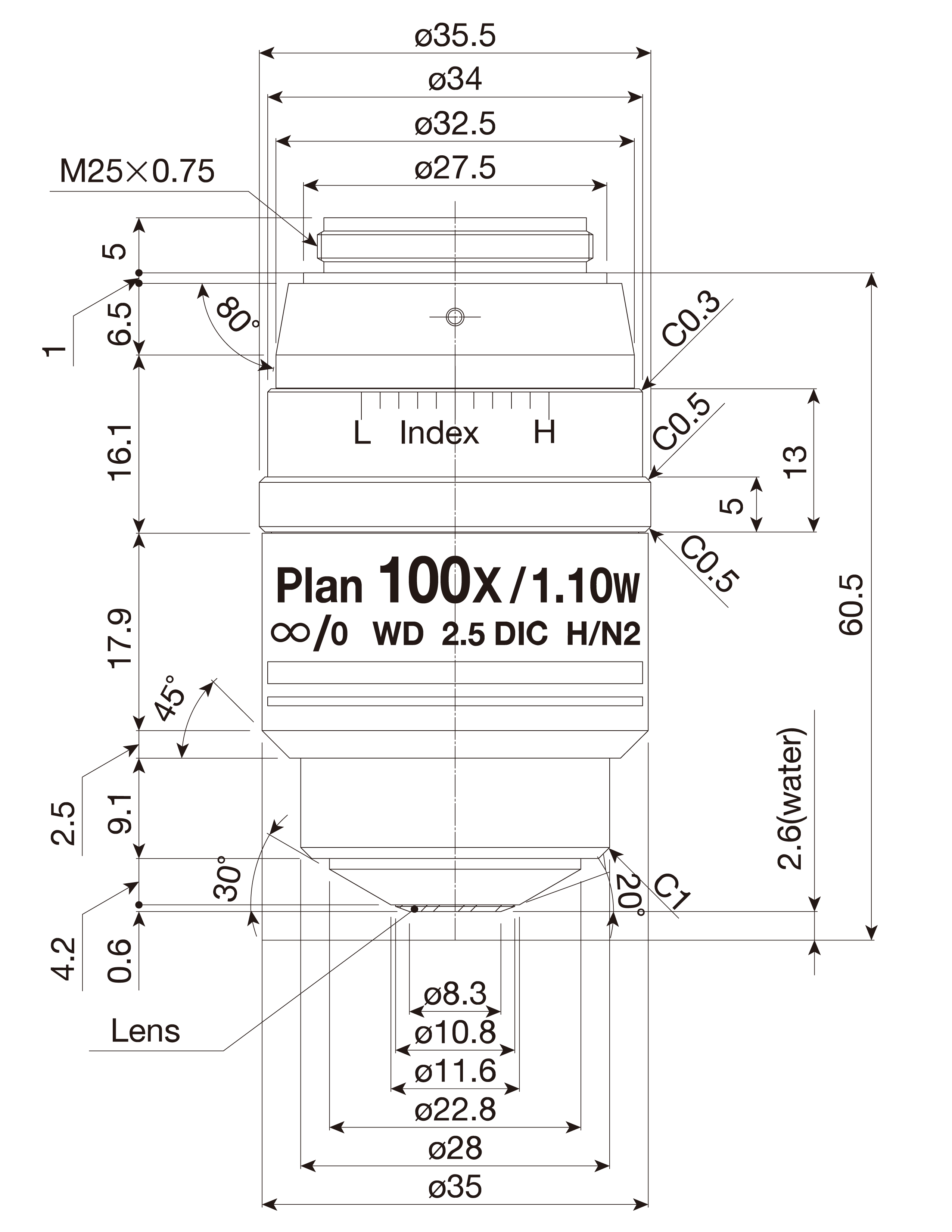

| Diagram (mm) |
 |

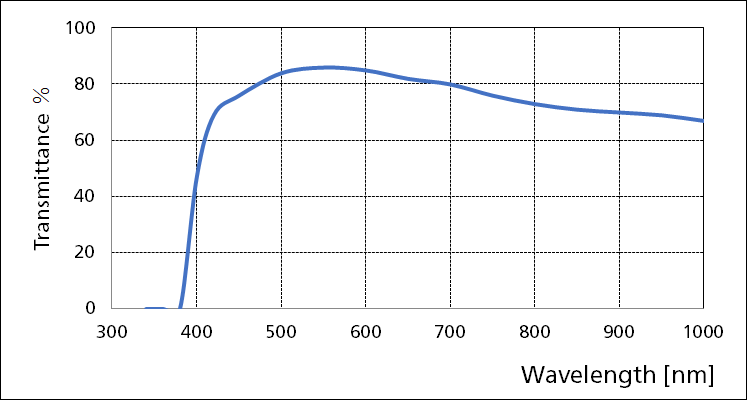

| Transmittance Graph |  |
| CFI Plan 100XC W |
|
|---|---|
| Brightfield | recommended for best results |
| Darkfield | darkfield condenser (oil) |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | |
| Fluorescence (NIR) | suitable |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type |
| CFI Plan 100XC W |
|
|---|---|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible |
| CFI Plan 100XC W |
|
|---|---|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | ✓ |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
