中文NIKON CFI Plan Fluor 10X W Objectives NA 0.3 WD 3.5mm
NIKON CFI Plan Fluor 10X W Objectives NA 0.3 WD 3.5mm
Phone：+86-21-54286005

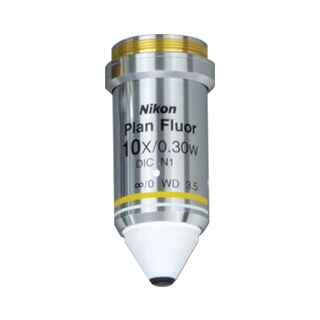

NIKON CFI Plan Fluor 10X W
Objectives NA 0.3 WD 3.5mm
| CFI Plan Fluor 10X W |
|
|---|---|
|
|
| Material Number | MRH07120 |
| Type | Water Dipping |
| Primary Technique | Brightfield |
| Immersion | Water Dipping |
| Magnification | 10X |
| Numerical Aperture | 0.3 |
| Working Distance | 3.5 |
| Cover Glass Thickness | 0 |
| CFI Plan Fluor 10X W |
|
| Diagram (mm) |
 |
| Transmittance Graph |  |
| CFI Plan Fluor 10X W |
|
| Brightfield | recommended for best results |
| Darkfield | universal condenser (dry) and darkfield ring |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | recommended for best results |
| Fluorescence (NIR) | suitable |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Plan Fluor 10X W |
|
| Correction Collar | |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Plan Fluor 10X W |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
