中文NIKON Plan Apo 10XC Glyc Objectives NA 0.5 WD 5.5mm
NIKON Plan Apo 10XC Glyc Objectives NA 0.5 WD 5.5mm
Phone：+86-21-54286005

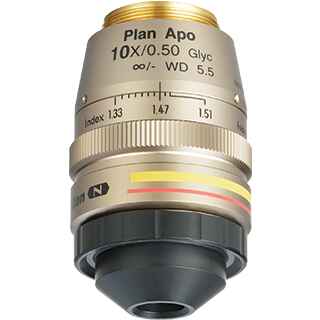

NIKON CFI Plan Apo 10XC Glyc
Objectives NA 0.5 WD 5.5mm
| CFI Plan Apo 10XC Glyc |
|
|---|---|
|
|
| Material Number | MRD71120 |
| Type | Cleared Tissue |
| Primary Technique | Multiphoton |
| Immersion | Oil, Water Immersion, Glycerin, Silicone Oil |
| Magnification | 10X |
| Numerical Aperture | 0.5 |
| Working Distance | 5.5 |
| Cover Glass Thickness | 0–0.17 |
| CFI Plan Apo 10XC Glyc |
|
| Diagram (mm) |
 |

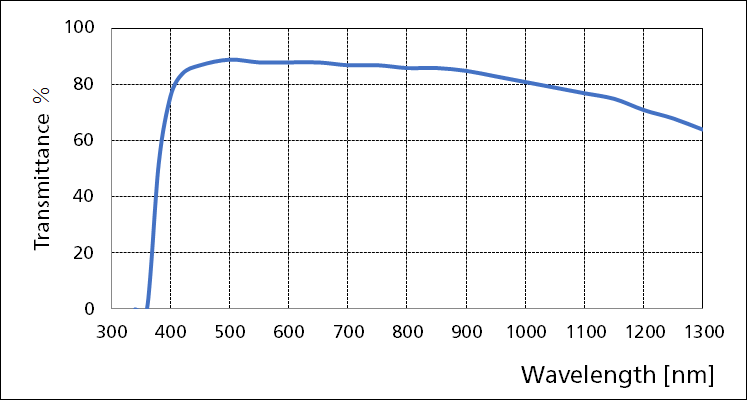

| Transmittance Graph |  |
| CFI Plan Apo 10XC Glyc |
|
| Brightfield | recommended for best results |
| Darkfield | universal condenser (dry) and darkfield ring, darkfield condenser (dry/oil) |
| DIC | |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | |
| Fluorescence (NIR) | recommended for best results |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI Plan Apo 10XC Glyc |
|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI Plan Apo 10XC Glyc |
|
| Asbestos | |
| Clear Tissue | ✓ |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
