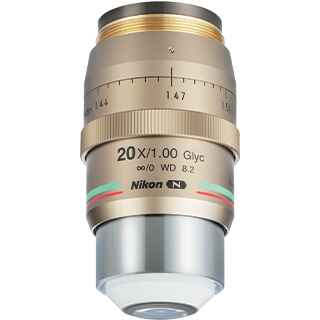

NIKON CFI90 20XC Glyc
Objectives NA 1 WD 8.2mm
| CFI90 20XC Glyc |
|
|---|---|
|
|
| Material Number | MRD71220 |
| Type | Cleared Tissue |
| Primary Technique | Multiphoton |
| Immersion | Glycerin |
| Magnification | 20X |
| Numerical Aperture | 1 |
| Working Distance | 8.2 |
| Cover Glass Thickness | 0 |
| CFI90 20XC Glyc |
|
| Diagram (mm) |
 |

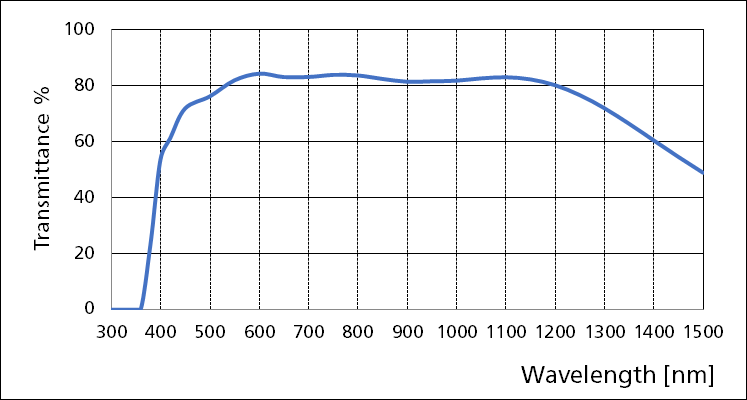

| Transmittance Graph |  |
| CFI90 20XC Glyc |
|
| Brightfield | possible but not recommended |
| Darkfield | |
| DIC | |
| Fluorescence (visible) | |
| Fluorescence (UV) | |
| Fluorescence (NIR) | recommended for best results |
| Polarizing | |
| Polarizing Type | |
| Phase Contrast Ring | |
| Phase Contrast Type | |
| CFI90 20XC Glyc |
|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | |
| CFI90 20XC Glyc |
|
| Asbestos | |
| Clear Tissue | ✓ |
| Clinical / Laboratory | |
| Confocal | |
| Education | |
| Laser Trapping / Tweezing | |
| Multiphoton | ✓ |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | |
| Tissue Culture |
