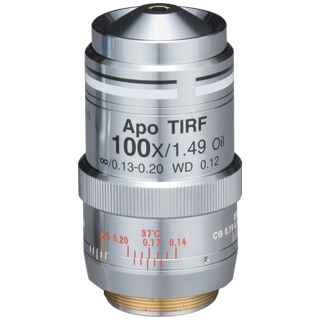

NIKON Apo TIRF 100XC Oil Objectives NA 1.49 WD 0.16-0.09 mm

NIKON CFI Apo TIRF 100XC Oil Objectives NA 1.49 WD 0.16-0.09 mm

Phone：+86-21-54286005

Overview Specifications

NIKON CFI Apo TIRF 100XC Oil

CFI Apo TIRF 100XC Oil

	CFI Apo TIRF 100XC Oil

Material Number	MRD01991
Type	Apochromat
Primary Technique	TIRF
Immersion	Oil
Magnification	100X
Numerical Aperture	1.49
Working Distance	0.16–0.09
Cover Glass Thickness	0.13–0.19
	CFI Apo TIRF 100XC Oil
Diagram (mm)

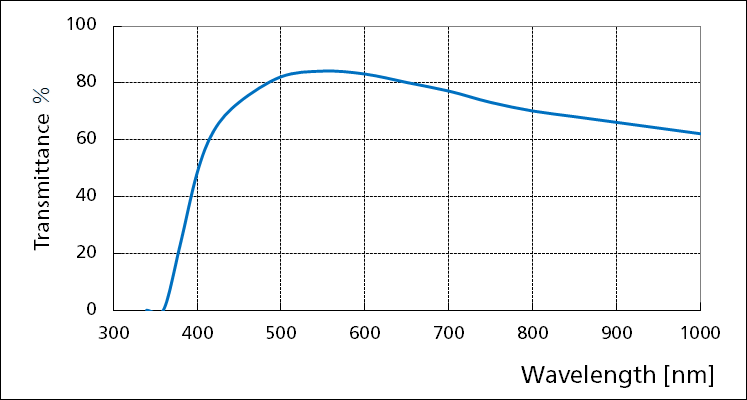

Transmittance Graph
	CFI Apo TIRF 100XC Oil
Brightfield	recommended for best results
Darkfield
DIC	suitable
Fluorescence (visible)	recommended for best results
Fluorescence (UV)	possible with visible light that has a longer wavelength than the excitation light used for DAPI
Fluorescence (NIR)
Polarizing	suitable
Polarizing Type	Simple POL
Phase Contrast Ring	EXT PH4
Phase Contrast Type
	CFI Apo TIRF 100XC Oil
Correction Collar	✓
Spring Loaded
Iris
Long Working Distance
Ti2-E PFS Compatible	✓
	CFI Apo TIRF 100XC Oil
Asbestos
Clear Tissue
Clinical / Laboratory
Confocal	✓
Education
Laser Trapping / Tweezing	✓
Multiphoton
SIM	✓
STORM	✓
Research	✓
TIRF	✓
Tissue Culture
