中文NIKON Apo TIRF 60XC Oil Objectives NA 1.49 WD 0.16-0.07 mm
NIKON Apo TIRF 60XC Oil Objectives NA 1.49 WD 0.16-0.07 mm
Phone：+86-21-54286005

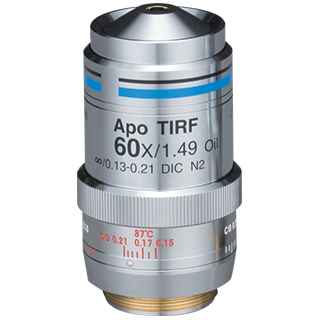

NIKON CFI Apo TIRF 60XC Oil
Objectives NA 1.49 WD 0.16-0.07 mm
| CFI Apo TIRF 60XC Oil |
|
|---|---|
|
|
| Material Number | MRD01691 |
| Type | Apochromat |
| Primary Technique | TIRF |
| Immersion | Oil |
| Magnification | 60X |
| Numerical Aperture | 1.49 |
| Working Distance | 0.16–0.07 |
| Cover Glass Thickness | 0.13–0.19 |
| CFI Apo TIRF 60XC Oil |
|
| Diagram (mm) |
 |

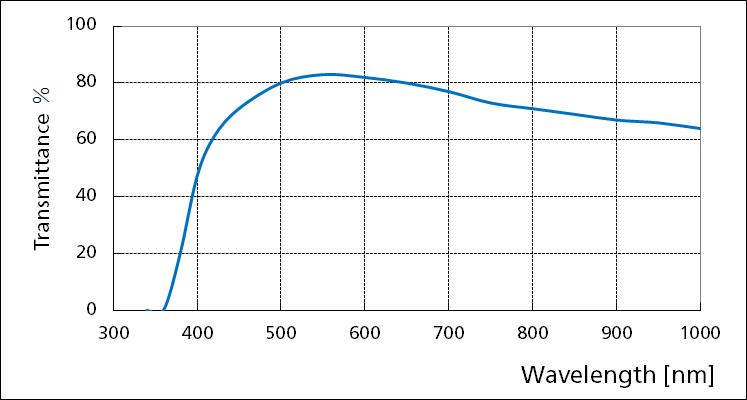

| Transmittance Graph |  |
| CFI Apo TIRF 60XC Oil |
|
| Brightfield | recommended for best results |
| Darkfield | |
| DIC | suitable |
| Fluorescence (visible) | recommended for best results |
| Fluorescence (UV) | possible with visible light that has a longer wavelength than the excitation light used for DAPI |
| Fluorescence (NIR) | |
| Polarizing | suitable |
| Polarizing Type | Simple POL |
| Phase Contrast Ring | EXT PH4 |
| Phase Contrast Type | |
| CFI Apo TIRF 60XC Oil |
|
| Correction Collar | ✓ |
| Spring Loaded | |
| Iris | |
| Long Working Distance | |
| Ti2-E PFS Compatible | ✓ |
| CFI Apo TIRF 60XC Oil |
|
| Asbestos | |
| Clear Tissue | |
| Clinical / Laboratory | |
| Confocal | ✓ |
| Education | |
| Laser Trapping / Tweezing | ✓ |
| Multiphoton | |
| SIM | |
| STORM | |
| Research | ✓ |
| TIRF | ✓ |
| Tissue Culture |
