AOHUA AQL-200L Endoscope LED light source

Phone：+86-21-54286005

Resources

Overview Specifications

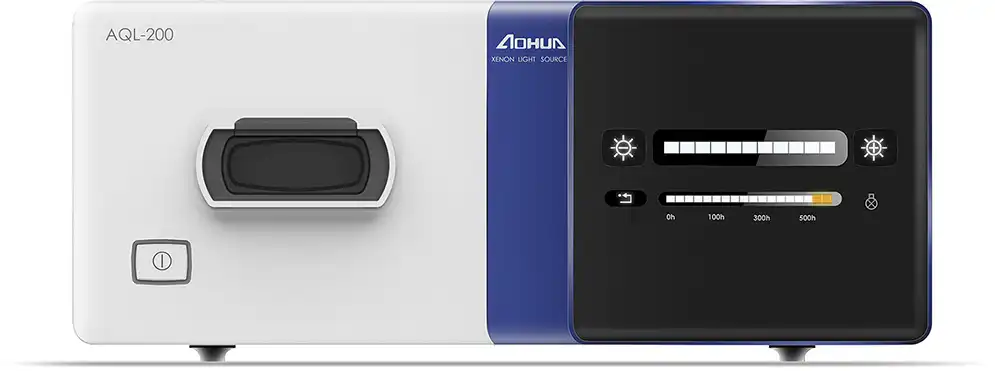

AOHUA AQL-200L

Endoscope LED light source

AQL-200L

CBI Upgrade

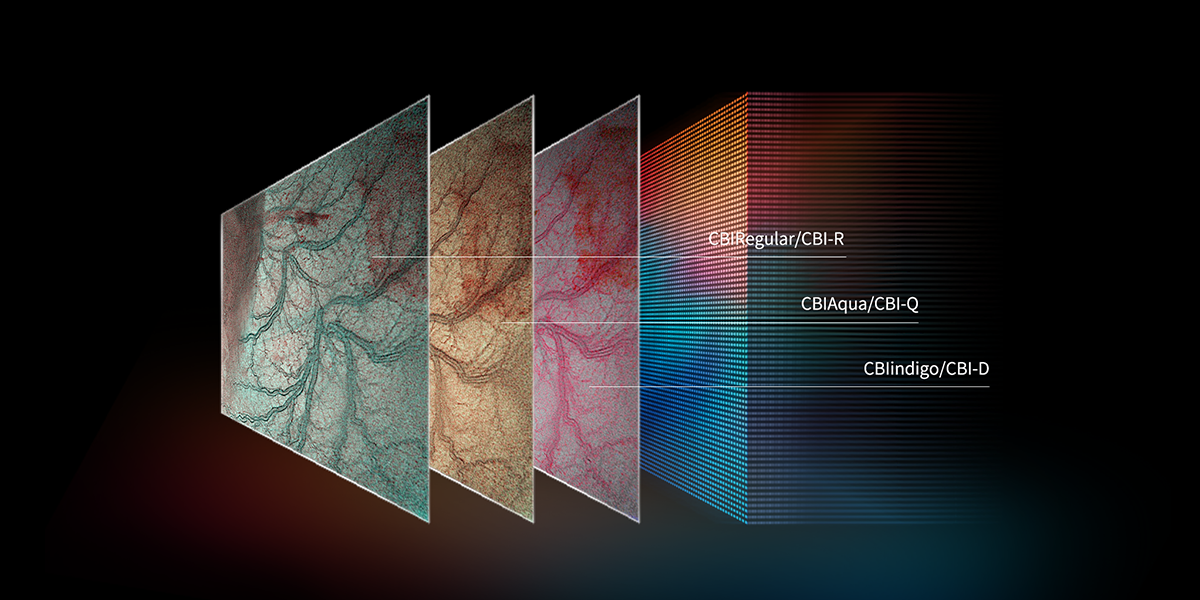

The AQL-200L can achieve white light mode and CBI multi-mode optical staining imaging Three mode images can meet the needs of different clinical applications

CBI Upgrade

CBI CBI CBI

Million Pixels

A million-level high-pixel image sensor presents high-resolution endoscopic images

聚焦高画质视界

High Technologies

Laser Transmission

High-speed laser transmission to present more detailed image information
Enhanced insulation strength for improved anti-interference and stability

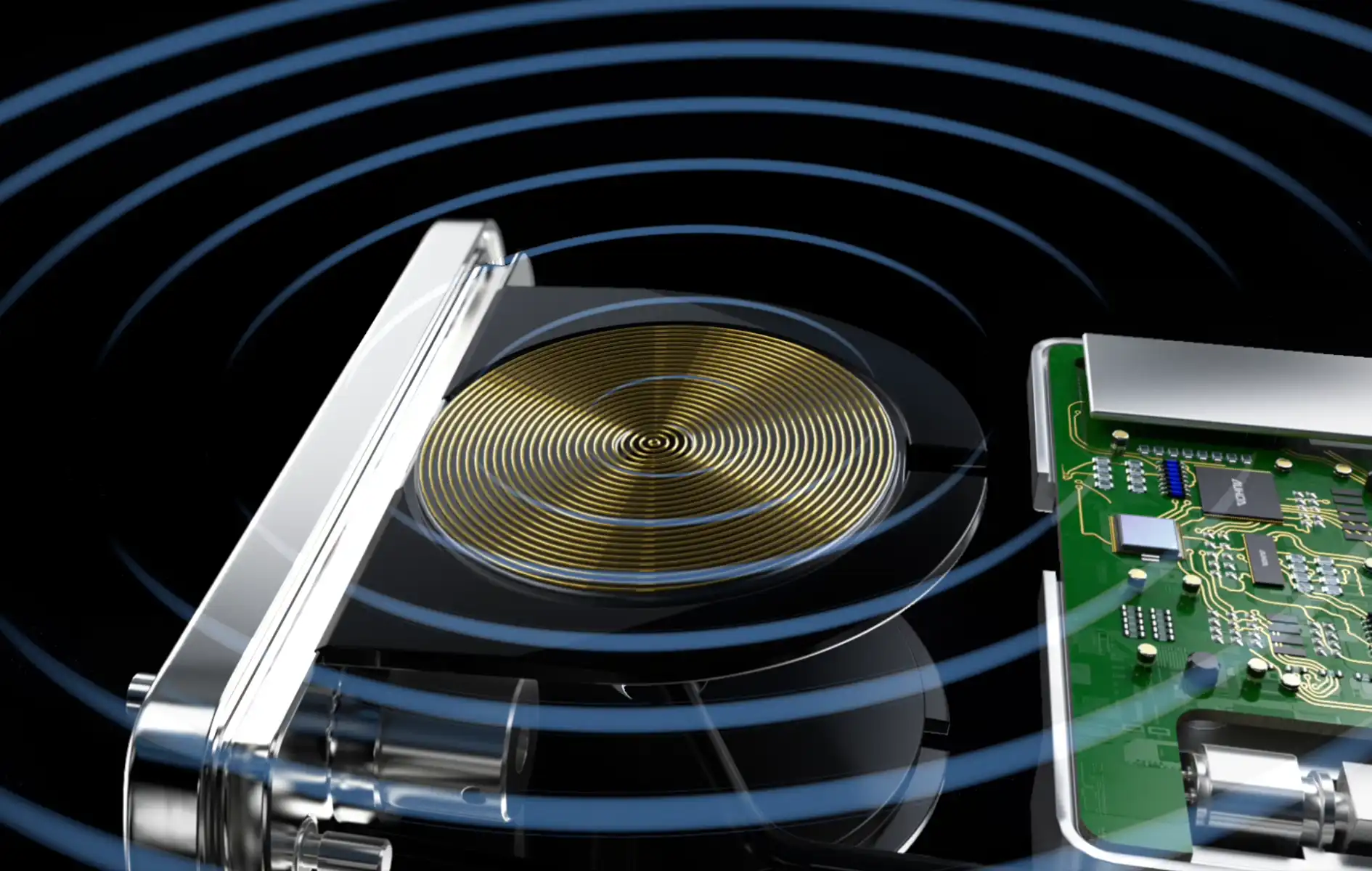

Wireless Power Supply

Achieve contactless power supply to avoid leakage risk
Immune to high-frequency electric devices

无线供电

Product Associated

Olympus CLV-190 Xenon Light Source

AOHUA AQL-300L Endoscope LED light source

AOHUA AQL-200 Elite Endoscope LED light source

Olympus VISERA ELITE III CLL-S700 LED Light Source

R. Wolf 806635301 Fiber light cable Ø3.5 mm Length 3.0 m

R. Wolf 806550301 Fiber light cable Ø5.0 mm Length 3.0 m

R. Wolf 5160001 ENDOLIGHT LED 1.1 light source

R. Wolf 5161001 ENDOLIGHT LED 1.2 LED light source

R. Wolf 5163001 ENDOLIGHT LED 2.1 LED light source

R. Wolf 5164001 ENDOLIGHT LED 2.2 Light source

Karl Storz TL410 POWER LED SAPHIRA Light Source

Karl Storz 495NE/495NA/495NCS/495NCSC Fiber Optic Light Cable

Karl Storz 20161401-1 Power LED 175 Light Source

Karl Storz TL300 Power LED 300 Light Source

Karl Storz TL400 Power LED RUBINA NIR/ICG Light Source

Olympus CLV-290SL Xenon Endoscopic Light Source

Light source	Product name	Endoscope LED cold light source
Power supply	Rated voltage	220V
	Rated frequency	50Hz
	Input power	300VA
Dimensions	Size (width * high *depth)	470 (L X 400 (W) × 165 (H) mm
Dimensions	Weight	17KG
Medical appliance category	Electric shock protection class	Class I
	Electric shock protection type	Type BF
	Explosion-proof protection grade	It is strictly prohibited to install and use in the room containing combustible gas to avoid explosion or fire.
Lighting	Light source type	LED light source
	Lighting mode	White light and three narrow-band lighting modes are supported.
	Optical staining	It has three modes of optical staining: CBI-R, CBI-D and CBI-Q.
	Light source service life	Light source service life: about 10000 hours
	Service life indication	The main lamp has a life indication function, which can indicate the used time of the bulb.
	Light source color temperature	Light source color temperature: 3000-7000k
	Color rendering index	Color rendering index: > 90
	Dimming mode	Dimming mode: manual dimming and automatic dimming, two modes
Air pump	Air pump type	Diaphragm air pump
	Air pump pressure	Air pump pressure range: 40-90kPа
	Flow selection	Air pump flow: OFF\ L\M\H (off, high, medium and low flow) options for air pump flow
	Air pump flow rate	Flow rate range: 4-7L/min
Water delivery	Water bottle	The detachable water bottle is pressurized to realize water delivery for lens washing
Memory storage	Save settings	The parameter settings used are automatically saved after the equipment is powered off
