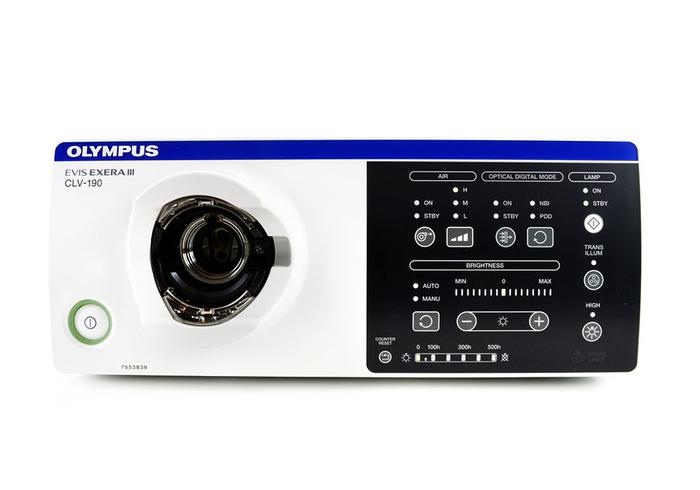

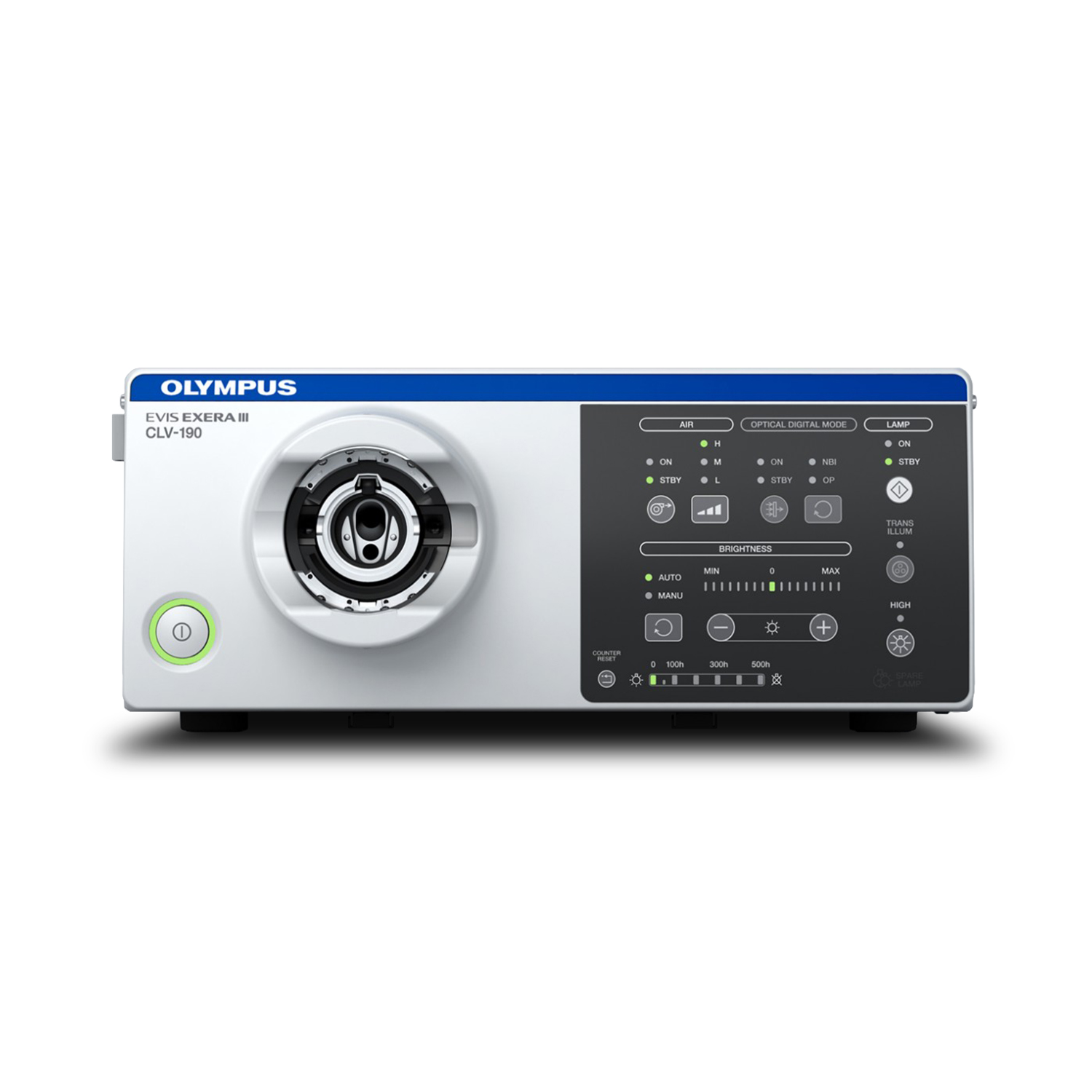

Olympus CLV-190 Xenon Light Source

Phone：+86-21-54286005

Resources

CLV-190_Brochure_EN

Overview Specifications

Olympus CLV-190

EVIS EXERA III VIDEO XENON LIGHT SOURCE

One-touch access to HDTV and NBI

CLV-190

Main Features

NBI (Narrow Band Imaging) in EVIS EXERA III 190 Series scopes provides twice the viewable distance and offers much greater contrast between blood vessels and mucosa thanks to an improved lamp design and signal processing.
The newly designed waterproof one-touch connector allows a one-step connection to the light source and does not
require a scope cable.
Considerable reduction in operating noise thanks to redesigned fan.
Link connection to peripheral devices avoids complicated cable connections and accelerates transmission speed.
Automatic light adjustment to achieve the ideal illumination for observation with each scope.

Product Associated

AOHUA AQL-300L Endoscope LED light source

AOHUA AQL-200 Elite Endoscope LED light source

AOHUA AQL-200L Endoscope LED light source

Olympus VISERA ELITE III CLL-S700 LED Light Source

R. Wolf 806635301 Fiber light cable Ø3.5 mm Length 3.0 m

R. Wolf 806550301 Fiber light cable Ø5.0 mm Length 3.0 m

R. Wolf 5160001 ENDOLIGHT LED 1.1 light source

R. Wolf 5161001 ENDOLIGHT LED 1.2 LED light source

R. Wolf 5163001 ENDOLIGHT LED 2.1 LED light source

R. Wolf 5164001 ENDOLIGHT LED 2.2 Light source

Karl Storz TL410 POWER LED SAPHIRA Light Source

Karl Storz 495NE/495NA/495NCS/495NCSC Fiber Optic Light Cable

Karl Storz 20161401-1 Power LED 175 Light Source

Karl Storz TL300 Power LED 300 Light Source

Karl Storz TL400 Power LED RUBINA NIR/ICG Light Source

Olympus CLV-290SL Xenon Endoscopic Light Source

Power Supply	Voltage	100–240 V AC; within ±10%
	Frequency	50/60 Hz; within ±1 Hz
	Consumption electric power	600 VA
Size	Dimensions (W x H x D)	370 x 150 x 476 mm (standard) 390 x 162 x 551 mm (maximum)
Size	Weight	19 kg
Illumination	Examination lamp	Xenon short-arc lamp (ozone-free) 300 W
	Average lamp life	Approximately 500 hours of continuous use (With intermittent use, the lamp life may vary slightly.)
	Ignition method	Switching regulator
	Brightness adjustment	Light-path diaphragm control
	Cooling	Forced-air cooling
	NBI observation	Available
	Emergency lamp	Halogen lamp (within mirror) 12 V 35 W
	Average emergency lamp life	Approximately 500 hours
Automatic Brightness Adjustment	Automatic brightness adjustment method	Servo-diaphragm method
Automatic Brightness Adjustment	Automatic exposure	17 steps
Air Feeding	Pump	Diaphragm type pump
Air Feeding	Pressure switching	4-level available (OFF, low, medium, high)
Water Feeding	Method	Feeds water by pressurizing the detachable water container with air.
Indicators on Front Panel	Emergency lamp	Indicates absence of emergency lamp, disconnection and use of emergency lamp.
	NBI	When the NBI observation is enabled, the NBI indicator lights up.
	OP	It lights up if a special-purpose fi lter is installed into the light source.
Setting Memory	Settings (except filter setting) are stored even when the light source is OFF.
Classification (medical electrical equipment)	Type of protection against electric shock	Class I
	Degree of protection against electric shock of applied part	TYPE BF applied part NOTE: The applied part as classification types are not marked is the TYPE BF applied part.
	Degree of protection against explosion	This instrument should be kept away from flammable gases.
