Olympus BF-UC290F Ultrasound Video Bronchoscope

Phone：+86-21-54286005

Resources

BF-UC290F_Brochure_EN

Overview Specifications Dimensions

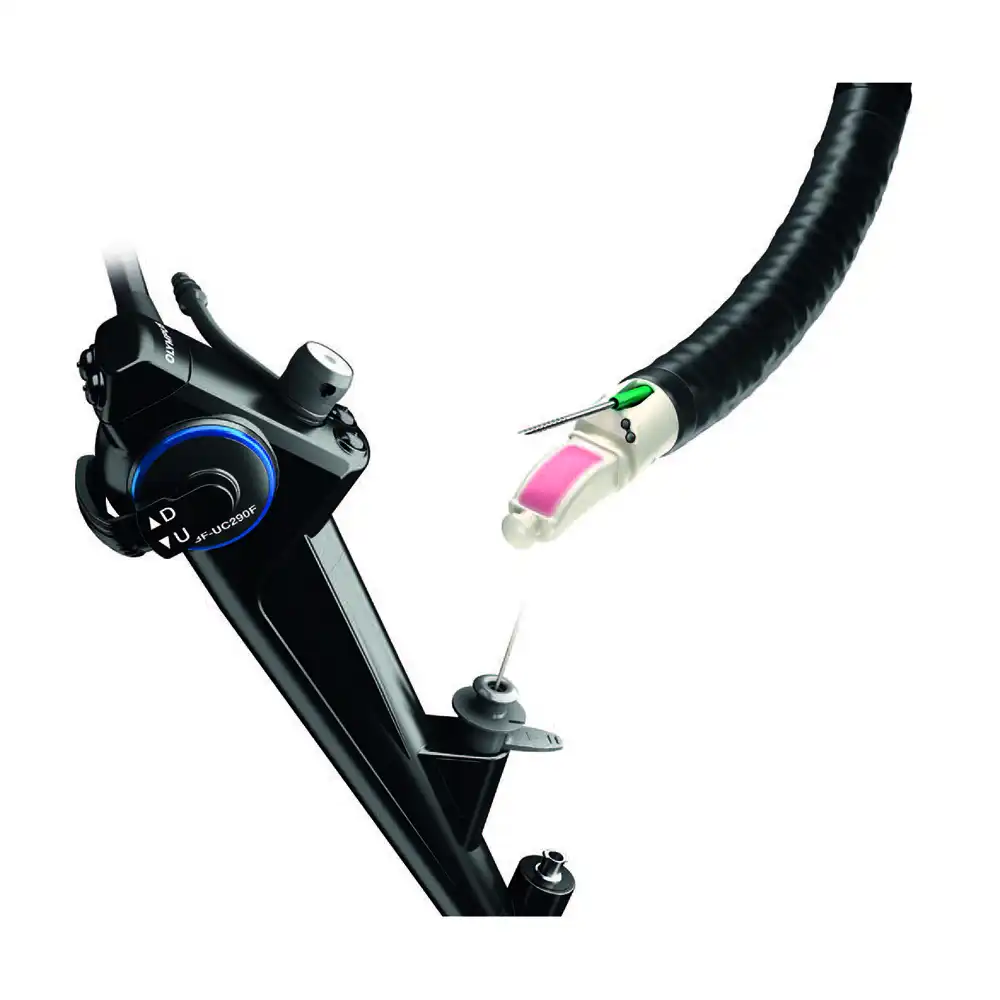

Olympus BF-UC290F

EVIS EUS Ultrasound Video Bronchoscope

BF-UC290F

Enhanced Access and Control

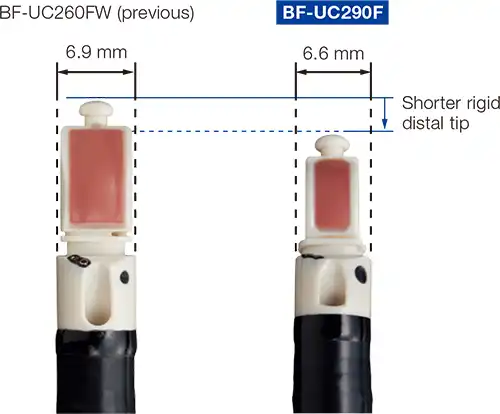

Unique, Compact Distal Tip
Only 6.6 mm outer diameter andshorter rigid part of 25 mm forimproved maneuverability.

Unique, Compact Distal Tip

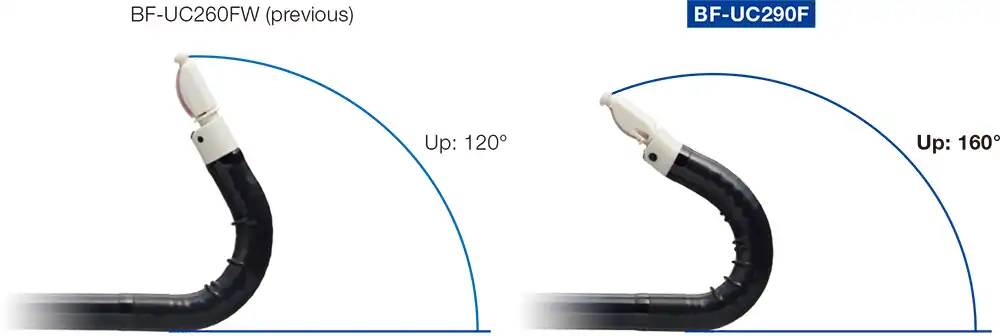

Powerful Angulation
Up to 160° angulation supports smoother insertion to the upper/lower lobe bronchi and allows more of a bend in the scope when an EndoTherapy device is inserted in the working channel.

Powerful Angulation

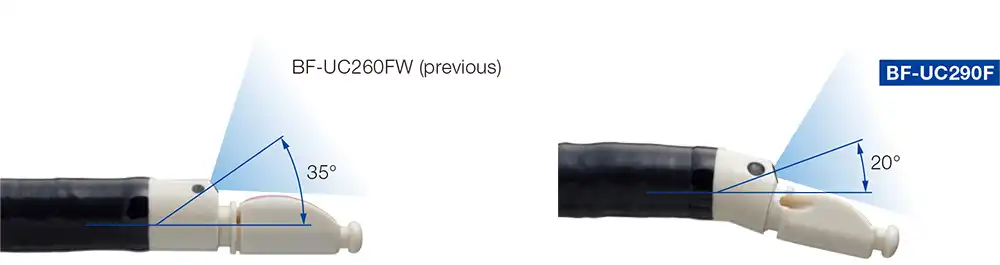

Easier Intubation and Orientation
The decreased forward oblique viewing angle from 35 degrees to 20 degrees allows for easier EBUS scope insertion. It also enables the operator to keep the endoscopic image in full field of view and assists the anatomic overview.

Easier Intubation and Orientation

Expand Your Possibilities in EBUS-TBNA
Olympus is unique in offering a 19G EBUS-TBNA needle in addition to the 21G, 22G and 25G needles. But now it also provides the second generation of EBUS needles — the ViziShot 2. While the entire portfolio offers the already established safety mechanisms and excellent ultrasound visibility, Olympus provides a needle for every situation — expanding your possibilities in EBUS-TBNA.

ViziShot 2 FLEX

Largest EBUS needle with a 19G diameter.
Supports histological sampling for suspected sarcoidosis and lymphoma but also helps to provide more tissue for advanced molecular analyses.
An ally for special indications but also whenever superior flexibility is needed.

ViziShot 2

The new, improved 21G, 22G and 25G needles.
Smooth needle penetration thanks to sharper needle tip.
Better needle control with the new ergonomic handle design.

ViziShot
∙ The reliable and long-established EBUS-TBNA needle.

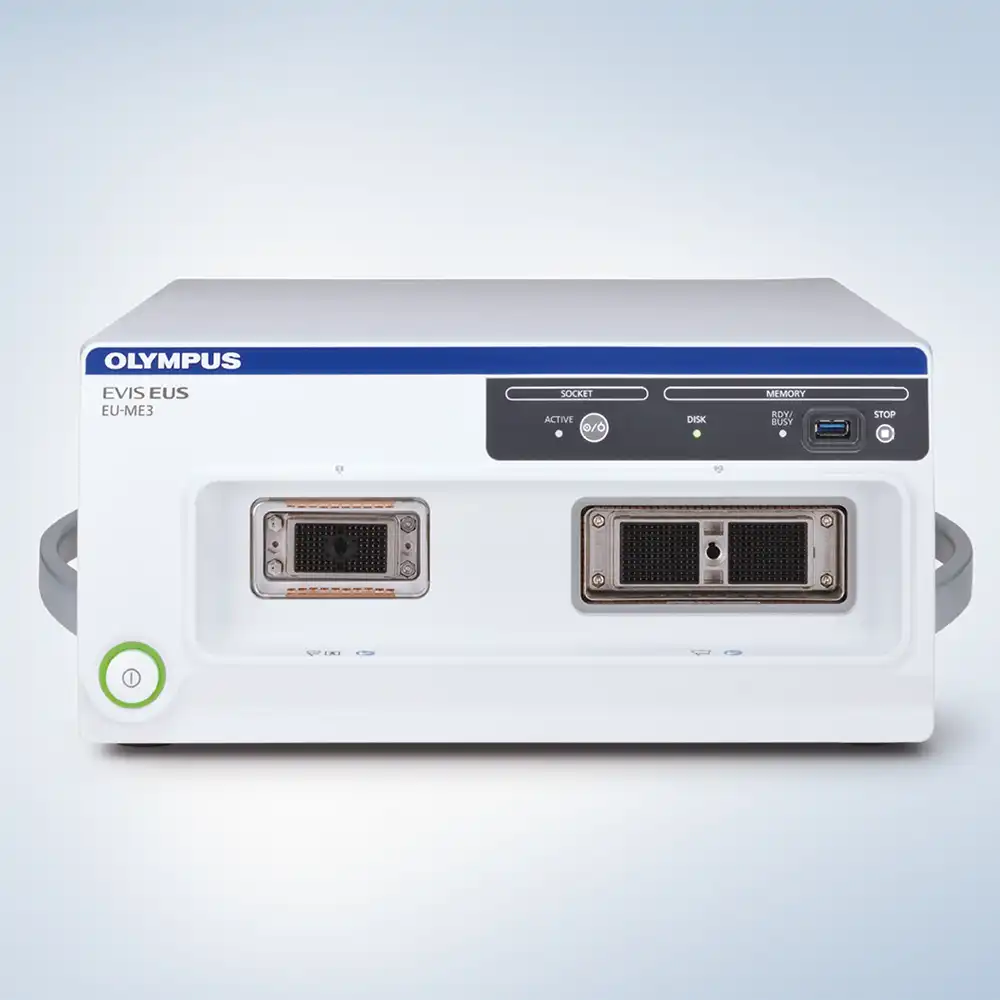

Universal Endoscopic Ultrasound Center EU-ME3
The EU-ME3 brings real clarity to your EBUS procedures, supporting better detection and characterization of lesions. A variety of new features such as harmonic echo and elastography help to explore the future of endosonography. In addition, the EU-ME3 provides compatibility with linear endoscopes and radial ultrasound miniature probes.

EU-ME3

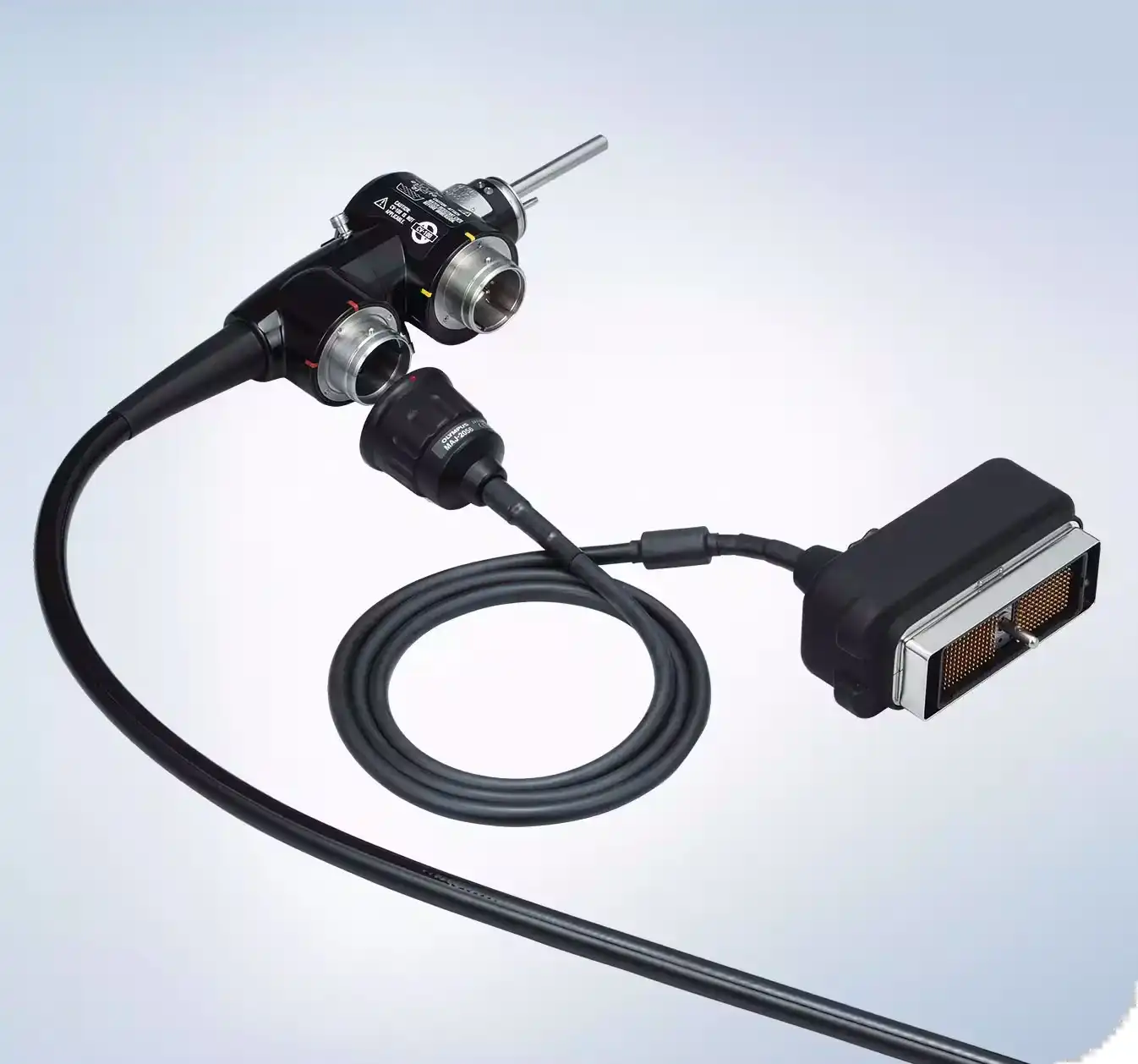

Ultrasound Cable MAJ-2056
The cable's detachable design makes the ultrasound endoscope easy to handle, reprocess and store.

MAJ-2056

	BF-UC290F
Optical system	Field of view	80°
	Direction of view	20° forward oblique
	Depth of fi eld	2-50 mm
Insertion section	Distal end outer diameter	6.6 mm
	Insertion tube outer diameter	6.3 mm
	Working length	600 mm
Instrument channel	Channel inner diameter	2.2 mm
Bending section	Angulation range	UP 160° Down 70°
Total Length		890 mm
