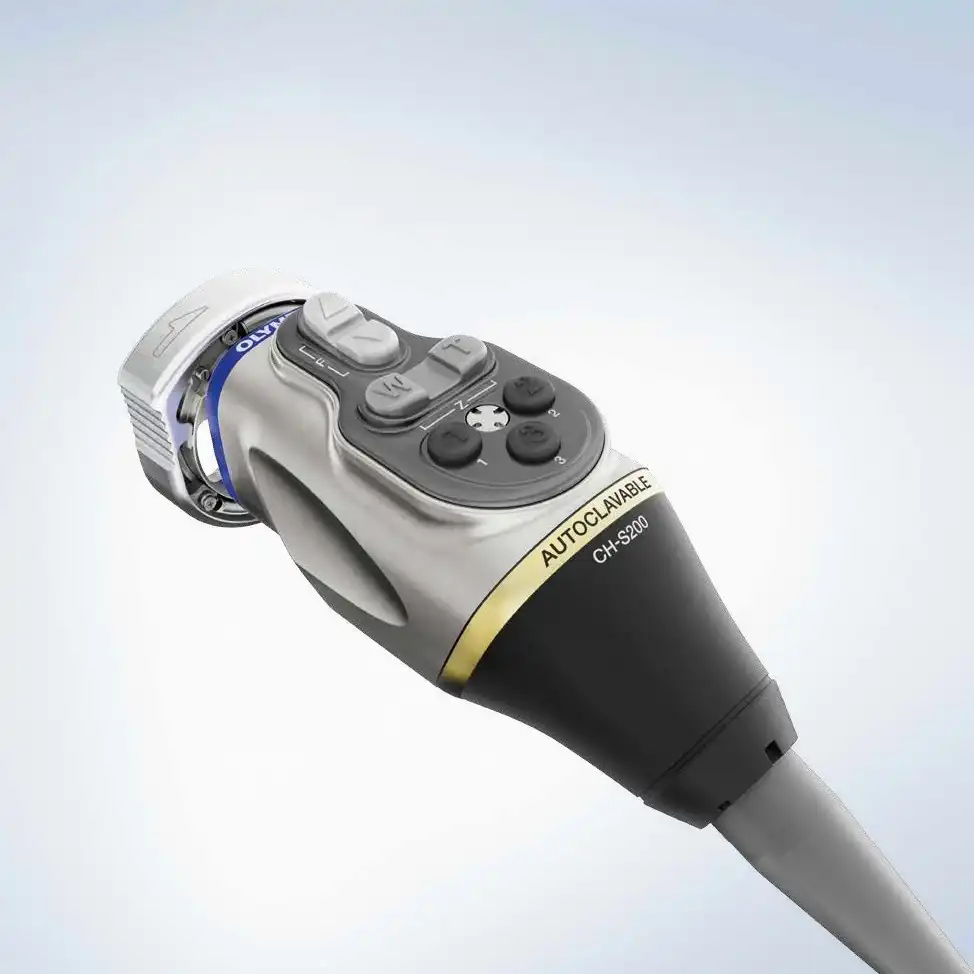

Olympus CH-S200-XZ-EA/B Full HD Camera Head

The 3CMOS camera head is the most lightweight on the market. With its three CMOS chips, it provides clear images with natural colors. It includes an IR filter to support an upgrade of the VISERA ELITE II system to IR observation.

Phone：+86-21-54286005

Resources

CH-S200-XZ-EA_Brochure_EN

CH-S200-XZ-EB_Brochure_EN

Overview Specifications

VISERA ELITE II CH-S200 Camera Head

Compact Size and Light Weight

CH-S200-XZ-EB Full HD 3CMOS camera head with IR filter

CH-S200-XZ-EA Full HD 3CMOS camera head autoclavable with IR filter. Simple electronic buttons for zoom and focus integrated.

3CMOS Sensor
∙ Broad covering of color gamut and enriched color reproducibility in full HD

Special Light Observation
· Select NBI and two modes of IR observation using only one remote button

Small, Compact Designs and Light Weight
· Offers an easy fit in the hand and maneuverability

2× Optical “Power” Zoom
· Magnified observation without image quality deterioration

Fiber Mode
· Prevents the moiré effect caused by the combination of camera head and flexible or semirigid scope

Autoclave Compatibility(CH-S200-XZ-EA only)
· Reduced costs compared with other sterilization methods

Product Associated

Olympus CH-S700-XZ-EA 4K Autoclavable Camera Head

R. Wolf 85525902 ENDOCAM logic 1-chip HD camera head

R. Wolf 85525922 ENDOCAM logic 3-chip HD camera head

R. Wolf 85525942 ENDOCAM logic 4K 3-chip camera head

Karl Storz TH100 IMAGE1 S H3-Z Camera Head

Karl Storz TH101 IMAGE1 S H3-ZI Camera Head

Karl Storz TH102 IMAGE1 S H3-Z FI Camera head

Karl Storz TH103 IMAGE1 S H3-P Camera Head

Karl Storz TH104 IMAGE1 S H3-ZA Camera Head

Karl Storz TH106 IMAGE1 S H3-M Coview Camera Head

Karl Storz TH110 IMAGE1 S HX Camera Head

Karl Storz TH111 IMAGE1 S HX-P Camera Head

Karl Storz TH112 IMAGE1 S HX-P FI Camera Head

Karl Storz TH113 IMAGE1 S HX-P FI Camera Head

Karl Storz TH120 IMAGE1 S 4U Camera Head

Karl Storz TH121 4K-NIR/ICG Camera Head

Size	Camera head dimensions (unit: mm)	1204652(CH-S200-XZ-EA) 1134652(CH-S200-XZ-EB)
	Camera head weight	295 g(CH-S200-XZ-EA) 220 g(CH-S200-XZ-EB)
	Cable	Φ6.8 mm × 3 m
Observation	Pickup system	CMOS image sensor (x 3)
Observation	Magnification ratio	Focal length f = 15.9 to 31.3 mm
NBI Observation Mode*		Available
IR Telescopes Observation Mode*		Available
Electronic Shutter Function*		Available
Electronic Zoom Function*		Available
Cleaning/Disinfection/ Sterilization	Cleaning/disinfection	Immersible in disinfectant solution
Cleaning/Disinfection/ Sterilization	Sterilization	Stream sterilization (autoclaving)(CH-S200-XZ-EA only) STERRAD 100S (Short cycle) 100NX (Duo cycle) NX (Standard cycle) V-PRO maX (Non Lumen cycle)
Classification (Electromedical Equipment)	Type of protection against electric shock	TYPE BF
Classification (Electromedical Equipment)	Degree of protection against explosion	The camera head should be kept away from flammable gases
