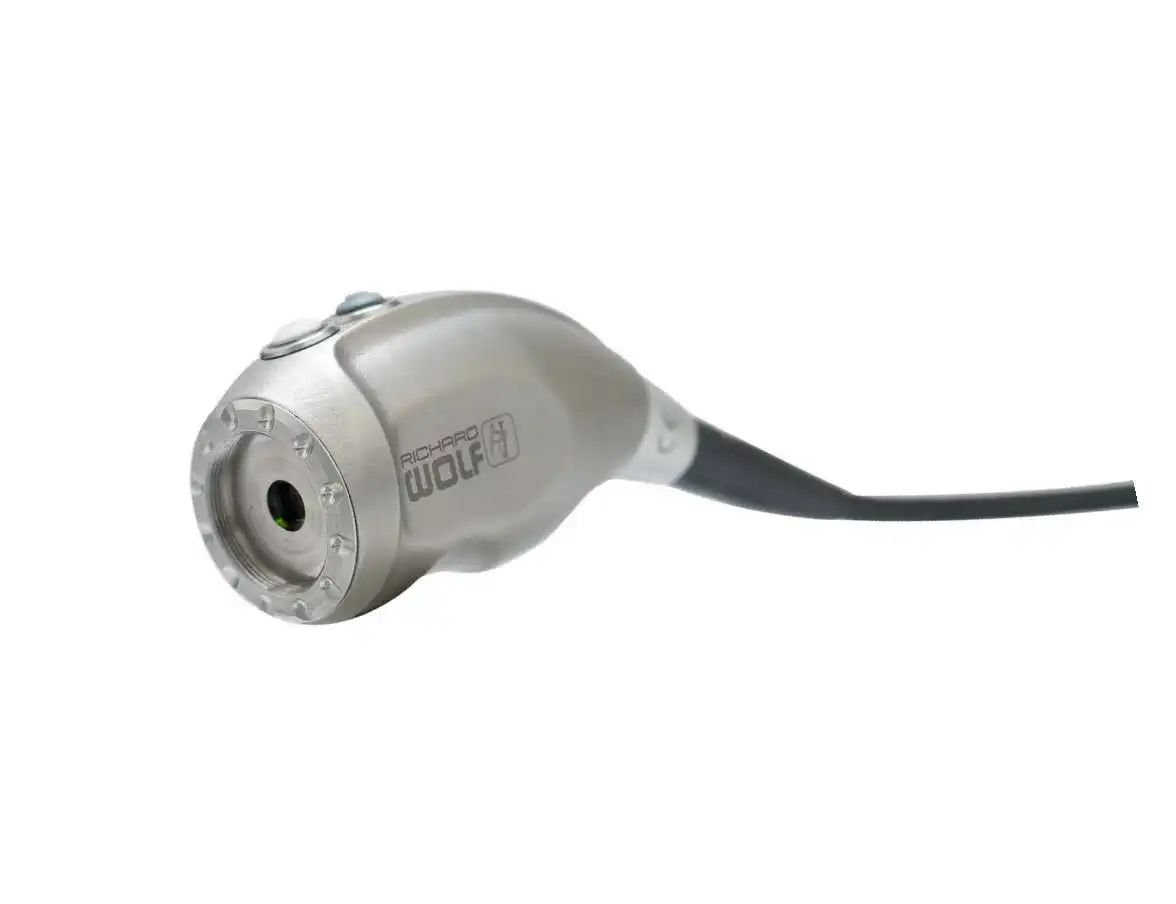

R. Wolf 85525942 ENDOCAM logic 4K 3-chip camera head

ENDOCAM logic 4K 85525942 3-chip camera head

Phone：+86-21-54286005

Overview Specifications

3-chip camera head

85525942

Digital image processing and digital signal transmission
2 programmable camera head buttons with 4 available functions
Ergonomic handling due to smaller, weight-saving design compared to previous HD camera heads
Production using 3D printer
Improved heat dissipation makes the device more pleasant to handle
Universal C-Mount lens connection
Service-friendly design: camera cable can be replaced on site by technician
Steam-sterilizable
Can be reprocessed by machine
Suitable for low-temperature procedure

ENDOCAM Logic 4K camera head ...................... 85525942
3-chip type, cable length 3 m

Product Associated

Olympus CH-S700-XZ-EA 4K Autoclavable Camera Head

R. Wolf 85525902 ENDOCAM logic 1-chip HD camera head

R. Wolf 85525922 ENDOCAM logic 3-chip HD camera head

Karl Storz TH100 IMAGE1 S H3-Z Camera Head

Karl Storz TH101 IMAGE1 S H3-ZI Camera Head

Karl Storz TH102 IMAGE1 S H3-Z FI Camera head

Karl Storz TH103 IMAGE1 S H3-P Camera Head

Karl Storz TH104 IMAGE1 S H3-ZA Camera Head

Karl Storz TH106 IMAGE1 S H3-M Coview Camera Head

Karl Storz TH110 IMAGE1 S HX Camera Head

Karl Storz TH111 IMAGE1 S HX-P Camera Head

Karl Storz TH112 IMAGE1 S HX-P FI Camera Head

Karl Storz TH113 IMAGE1 S HX-P FI Camera Head

Karl Storz TH120 IMAGE1 S 4U Camera Head

Karl Storz TH121 4K-NIR/ICG Camera Head

Olympus CH-S200-08-LB HD Camera Head

Camera head	85525942
Device properties
Sensor	3x 1/3" CMOS
Operation	2 programmable head buttons with 4 functions
Operating conditions	+10°C to +30°C, 20% to 75% rel. humidity, atmospheric pressure 700 hPa to 1060 hPa
Equipment
Thread for objective lens	C-Mount
Degree of protection against the ingress of moisture	IPX7
Service	Camera head cable and eyepiece snap-in coupling can be replaced on site
Dimensions and weight
Camera head weight (without cable)	121 g
Housing dimensions (W x H) -without cable and anti-kink protection	40 x 47 mm
Camera head length (without cable)	102 mm
Cable length	3 m
Cable outlet	30°

RIWO lens with snap-on mechanism and C-Mount thread, steam-sterilizable and reprocessable by machine		Product no.
	RIWO lens f = 14 mm	85261144
	RIWO lens f = 24 mm	85261244
RIWO zoom lens with snap-on mechanism and C-Mount thread,steam-sterilizable and reprocessable by machine
	RIWO zoom lens f = 13-29 mm	85261504
RIWO angular lens with rotatable snap-on mechanism and C-Mount thread, suspension function,suitable for reprocessing by machine and low-temperature procedure
	RIWO angular lens f = 14 mm	5257141
	RIWO angular lens f = 17 mm	5257171
