COVIDIEN BIS™ 186-0200 Pediatric Brain Monitoring Sensor, 4 Electrode

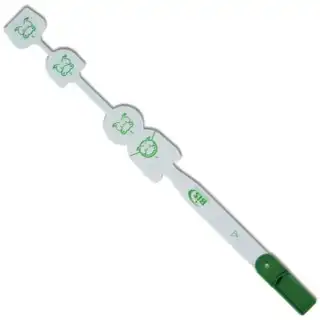

BIS™ 186-0200 Pediatric Brain Monitoring Sensor, 4 Electrode

Phone：+86-21-54286005

Overview Specifications Dimensions

BIS™ paediatric sensor offers:
- Peel-and-stick simplicity
- Zipprep™ technology
The BIS™ paediatric sensor facilitates use on smaller heads.
BIS™ sensors collect electroencephalograph (EEG) data.
BIS™ technology enables simple EEG data collection via a noninvasive sensor applied to the patient’s forehead.

Order Code	Description	Unit of Measure	Quantity
186-0200	BIS™ Pediatric Sensor	box	25

Specifications

Parameter Description
Sensor dimensions	10.5 in. x 1.1 in. (approx.)
Weight	3.2 g (approx.)
Weight (packaged)	16.3 g (approx.)
Packaging	25 individually packaged sensors per box
Shelf life	One and a half years from date of manufacture
Sensor Element Material Description
Connector (paddle)	Polycarbonate plastic (incidental patient contact)
Tab stiffener	Polycarbonate sheet (no patient contact)
	One side coated with adhesive
Module	Copper/brass/Kapton®* (no patient contact)
Flexible circuit	Polyester screen-printed with cured Ag/AgCl and dielectric inks (incidental patient contact)
Electrode gel	Potassium chloride (KCl) aqueous gel
Electrode tines disk	Green nylon plastic
Electrode sponge disk	Polyurethane/polyester foam
Electrode tines retaining disk	1/32 in. white polyethylene foam (no patient contact)
	Both sides coated with medical-grade adhesive
Basepad	1/16 in. white polyethylene foam
	Both sides coated with medical-grade adhesive
Liner card	Silicone-coated high-impact polystyrene (no patient contact)
Packaging	Paper/aluminum foil/polyethylene (no patient contact)
