中文KARL STORZ 4K-3D NIR/ICG Videoendoscope 26616BCA/26616ACA

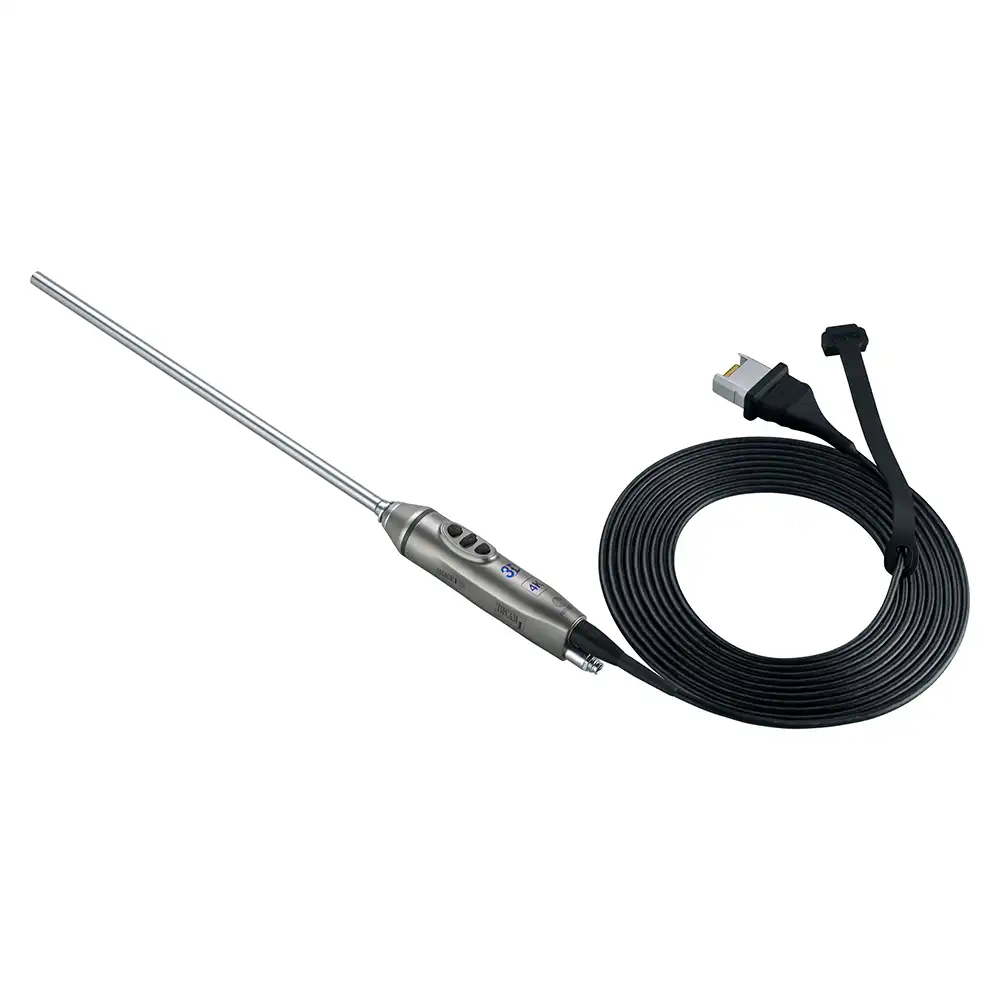

TIPCAM®1 RUBINA® – The New 4K-3D NIR/ICG Videoendoscope
Phone：+86-21-54286005
TIPCAM®1 RUBINA® – The New 4K-3D NIR/ICG Videoendoscope
- Automatic horizon control for better orientation and handling
- Available with 0° and 30° directions of view
- Easy toggle from 3D to 2D
- OPAL1® NIR/ICG visualization modes: Overlay, Monochromatic and Intensity Map
- 4K imaging chain
| 26616 BCA | 26616 ACA | |
| Image sensor resolution | 4K | 4K |
| Direction of view | 30° | 0° |
| Outer diameter | 10.3 mm | 10.3 mm |
| Working length | 317 mm | 317 mm |
| Fluorescence imaging (NIR/ICG) | yes; in conjunction with Power LED RUBINA | yes; in conjunction with Power LED RUBINA |
| Connection | 4U-Line | 4U-Line |
| Weight | 420 g | 420 g |
| Cable length | 600 cm | 600 cm |
| Cable routing | straight | straight |
| Frame rate | 50/60 Hz | 50/60 Hz |
| Image sensor type | CMOS | CMOS |
| Number of image sensors | 2 | 2 |
| Optical zoom | yes; digital | yes; digital |
| Camera head buttons | 3 buttons; 2 freely programmable | 3 buttons; 2 freely programmable |
| Autoclavable | yes | yes |
| H2O2 (hydrogen peroxide) | yes | yes |
| S-Technologies | CLARA; CHROMA; SPECTRA A + B | CLARA; CHROMA; SPECTRA A + B |
| degree of protection in conjunction with the IMAGE1 S™ camera control unit | CF defib | CF defib |
| Scanning method | progressive scan | progressive scan |
| Brand | TIPCAM®1 | TIPCAM®1 |
