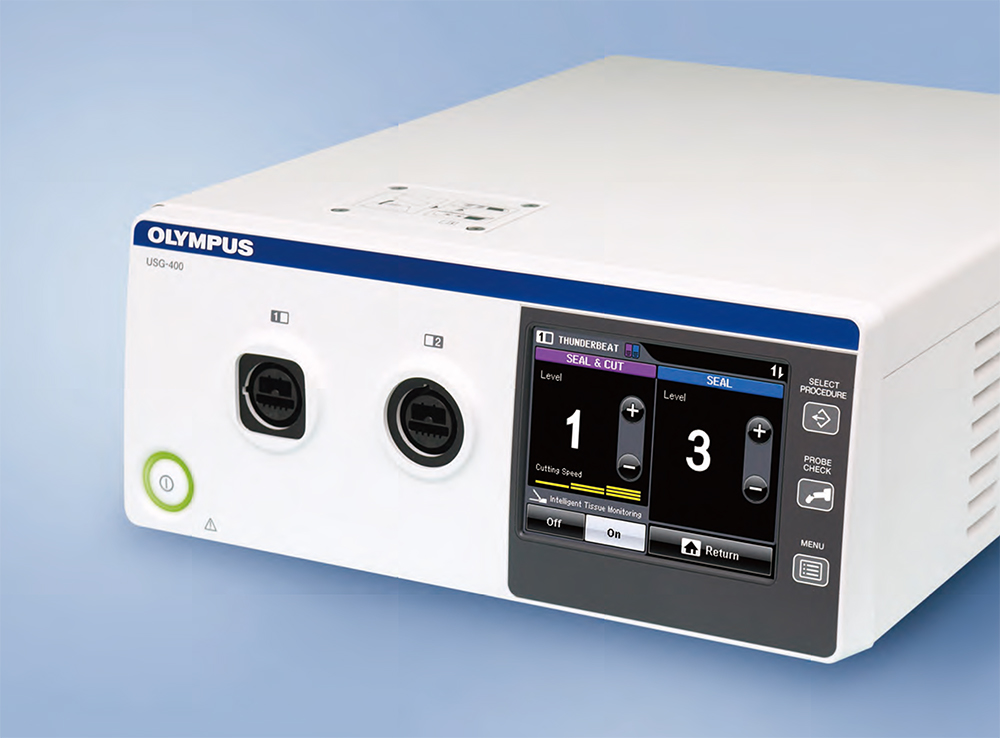

Olympus USG-400 Ultrasonic Generator
Ultrasonic generator for open and laparoscopic procedures
Main features
USG-400 supports
- THUNDERBEAT, Exclusively delivering both ultrasonic and bipolar energy for reliable vessel sealing
and the fastest in class tissue cutting, when combined with ESG-400, electrosurgical generator.
- SONICBEAT, Delivering ultrasonic energy for the simultaneous cut and coagulation of tissue.
USG-400 Features and Benefits
- Graphical User Interface for intuitive operation, ease of use, and rapid troubleshooting.
- Instrument recognition and automatic application of default settings for ease of use.
- Hand switch and foot switch activation options to meet each surgeon’s individual preferences.
- Automatic mist and smoke evacuation to maintain a clear laparoscopic view reducing delays
associated with compromised visualization, when combined with UHI series insufflator.
- A dedicated cart for transportation and storage.
Intelligent Tissue Monitoring
- Intelligent Tissue Monitoring is the world’s first safety assist technology that stops ultrasonic activation to prevent excessive temperature increase.
- Minimizes residual heat on the probe that can be caused by ultrasonic over-activation.
- Minimizes PTFE pad wear that can be caused by ultrasonic over-activation.
- The function can be easily turned On/Off.
|
Power Supply
|
Voltage
|
120/220 – 240 V AC
|
|
Voltage fluctuation
|
Within ±10%
|
|
Frequency
|
50/60 Hz
|
|
Frequency fluctuation
|
Within ±1 Hz
|
|
Input
|
360 VA
|
|
Fuse rating
|
4 A, 250 V
|
|
Fuse size
|
ø 5 × 20 mm
|
|
Size
|
Dimensions
|
375 (W) × 156 (H) × 480 (D) mm
|
|
Weight
|
9 kg
|
|
Classification (medical electrical equipment)
|
Type of protection against electric shock
|
Class I
|
|
Degree of protection against electric shock
|
CF type
|
|
Degree of protection against explosion
|
The ultrasonic generator should be kept away from flammable gases.
|
|
Output
|
Applicable instrument
|
THUNDERBEAT*1
|
|
|
SONICBEAT
|
|
ON/OFF operation
|
Footswitch
|
|
|
Handswitch
|
|
Output setting
|
Output setting and Intelligent Tissue Monitoring setting*2 are possible bytouching the Set screen displayed on the touch panel.
|
|
Frequency
|
47.0 kHz
|
*1 When combined with ESG-400, electrosurgical generator.
*2 The Intelligent Tissue Monitoring is available with software version 2.00 or later.
