Location：Home > Our Product > Endoscopysystem > Arthroscope > Olympus 4 mm Arthroscopes A70940A/A70941A/A70942A

Olympus 4 mm Arthroscopes A70940A/A70941A/A70942A

The Olympus 4 mm TrueView II telescopes both offer a 115° wide-angle field of view, distortion-free images, and a quick-lock connector for secure camera connection and fast telescope exchange. They are also autoclavable for maximum durability. The scopes are available in 0°, 30°, and 70°.

Phone：+86-21-54286005

Resources

TrueView II Arthroscopy_Brochure_EN

Overview Specifications

TrueView II 4 mm Arthroscopes

115° wide angle field of view
Nearly distortion-free image
Automatic click-connector
High-flow trocar design

TrueView II 4 mm Arthroscopes

Product Associated

Stryker 502-027-010 IDEAL EYES™ Arthroscope,2.7 mm,0º,75 mm

Stryker 502-127-070 IDEAL EYES™ Arthroscope,2.7 mm,70º,120 mm

Stryker 502-127-030 IDEAL EYES™ Arthroscope,2.7 mm,30º,120 mm

Stryker 502-127-010 IDEAL EYES™ Arthroscope,2.7 mm,0º,120 mm

Stryker 502-204-070 IDEAL EYES™ Arthroscope,4.0 mm,70º,165 mm

Stryker 502-204-030 IDEAL EYES™ Arthroscope,4.0 mm,30º,165 mm

Stryker 502-204-010 IDEAL EYES™ Arthroscope,4.0 mm,0º,165 mm

Stryker 502-104-070 IDEAL EYES™ Arthroscope,4.0 mm,70º

Stryker 502-104-045 IDEAL EYES™ Arthroscope,4.0 mm,45º

Stryker 502-104-030 IDEAL EYES™ Arthroscope,4.0 mm,30º

Stryker 502-104-010 IDEAL EYES™ Arthroscope,4.0 mm,0º

KARL-STORZ 28129CR Arthroscope Sheath, 6 mm/12 cm

KARL-STORZ 28126R Arthroscope Sheath, 5.5 mm/12 cm

Karl Storz 28126CR Arthroscope Sheath, 5.5 mm/12 cm

KARL-STORZ 28126B Arthroscope Sheath, 5.5 mm/12 cm

KARL-STORZ 28719BA HOPKINS Telescope 30°, 2.7 mm, 18 cm

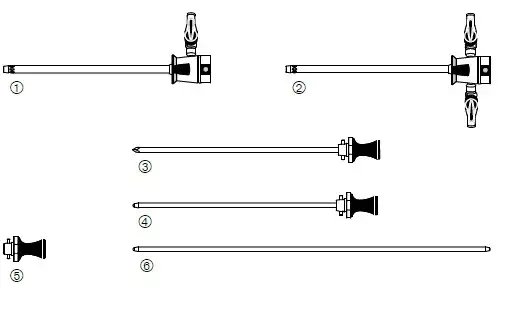

①	A70950A	Trocar tube, 1 stopcock, rotatable, high-flow
①	WA70952A	Trocar tube, 1 stopcock, rotatable, standard flow
②	A70951A	Trocar tube, 2 stopcocks, rotatable, high-flow
	WA70951B	Trocar tube, 2 stopcocks, rotatable, high-flow, without holes
	WA70953A	Trocar tube, 2 stopcocks, rotatable, standard flow
③	A70954A	Trocar spike, triangular
④	A70955A	Trocar spike, blunt
⑤	A70959A	Cover, for trocars, for lavage
⑥	A70958A	Guiding rod, 4 mm
⑥	A00507A	Sealing, set (not shown), for A70950A/-951A, WA70951B/-52A/53A

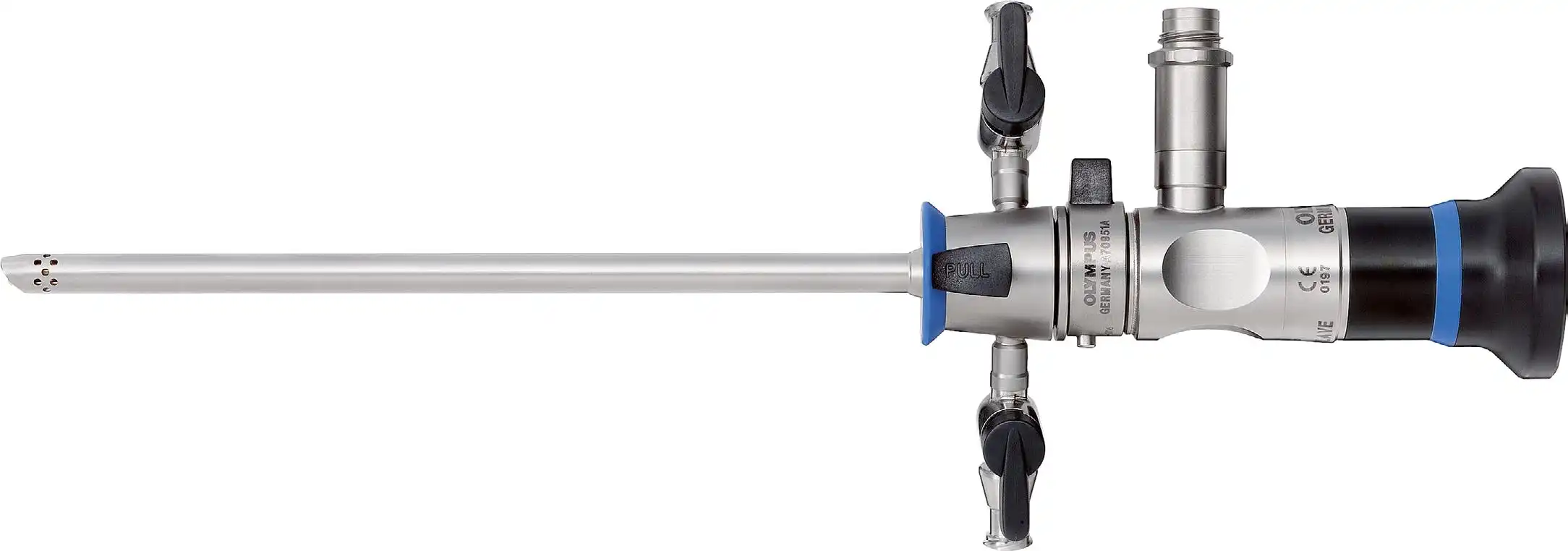

A70940A	Telescope, autoclavable, 0° direction of view, 115° field of view, 160 mm working length
A70941A	Telescope, autoclavable, 30° direction of view, 115° field of view, 160 mm working length
A70942A	Telescope, autoclavable, 70° direction of view, 115° field of view, 160 mm working length

Olympus 4 mm Arthroscopes A70940A/A70941A/A70942A

Resources

TrueView II 4 mm Arthroscopes

Product Associated
